Mini contactors
Miniature Contactors K03 K07 K08 AC or DC control voltages

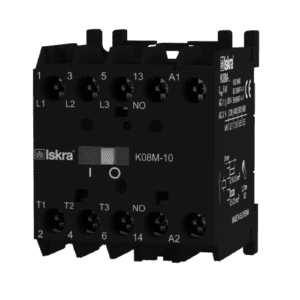

Mini contactors K03 K07 K08
Miniature Contactors K03 K07 K08 AC or DC control voltages
General Features
- Quick assembly to a 35 mm wide mounting rail in accordance with EN 60715
- A wide variety of snap-on auxiliary switch blocks and accessories
- Degree of protection IP 20

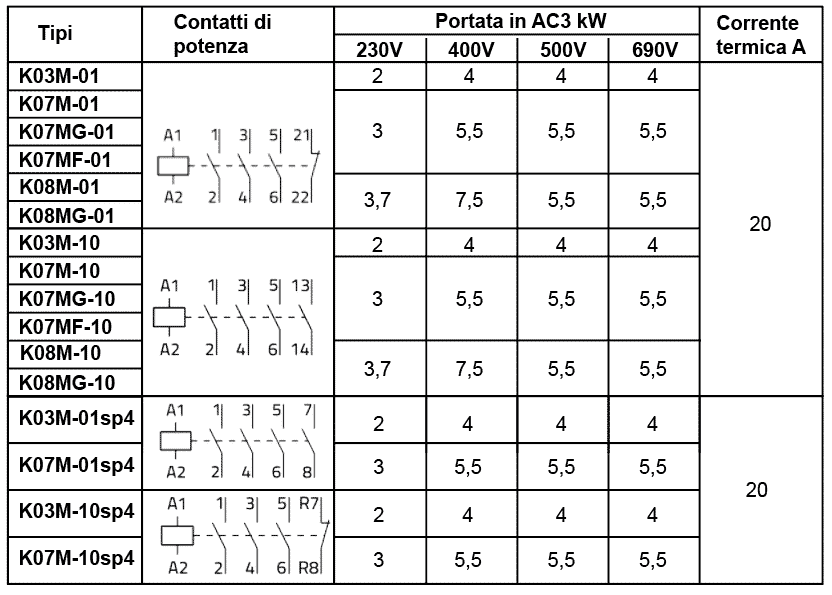

Technical Data
Standards
Approvals
K03 – K07 – K08
K03 – K07 – K08
K03 – K07
K03 – K07Types
| AC command screw connections | K03M-01 K03M-10 K07M-01 K07M-10 K08M-01 K08M-10 |
| AC with FASTON | K07MF-01 K07MF-10 |
| DC control voltage screw connection | K07MG-01 K07MG-10 K08MG-01 K08MG-10 |
| AC | K03M-01-sp4 K03M-10-sp4 K07M-01-sp4 K07M-10-sp4 |
Standard control voltages AC 50/60 Hz
| Volts | 24 | 48 | 110/125 | 220/240 | 380/400 | 440 | 500 |
| Tag | B7 | E7 | F7 | M7 | Q7 | R7 | S7 |
Control voltage in DC

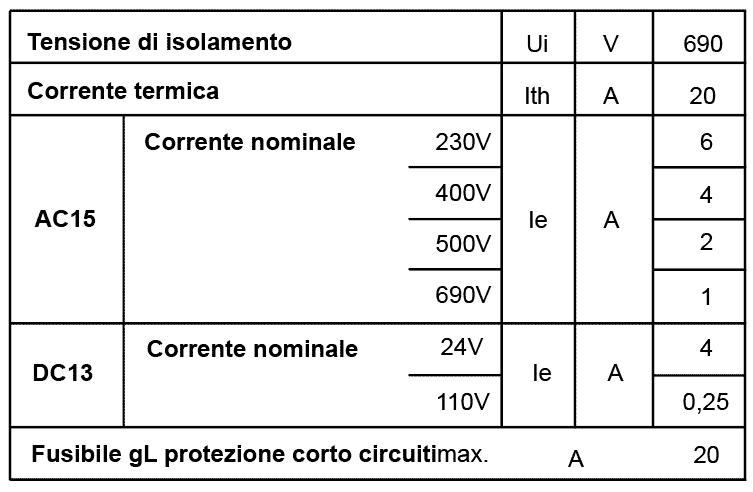

auxiliary switch blocks

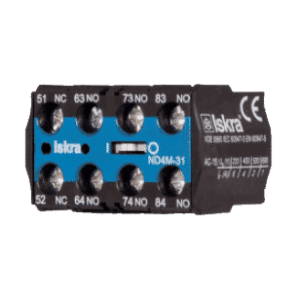

auxiliary switch blocks 2 or 4 contacts

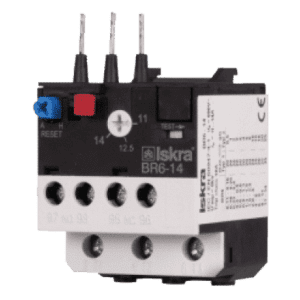

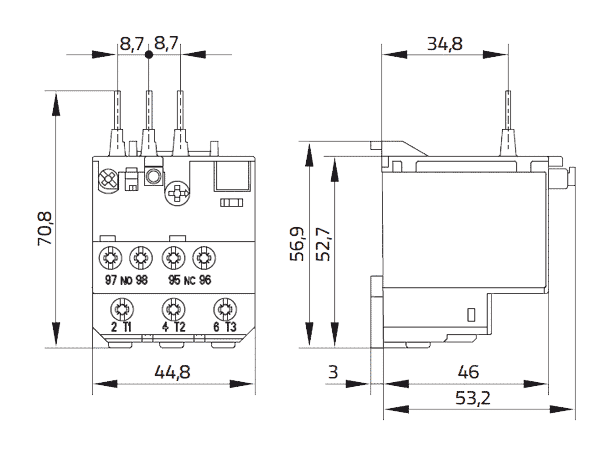

Thermal Overload Relay
Technical Data
Contactors
Magnetic System

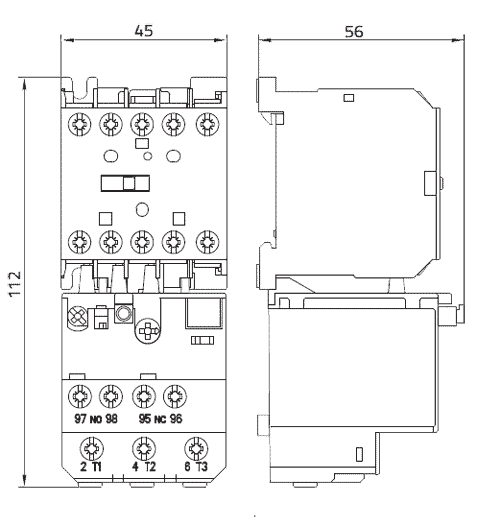

Dimensions

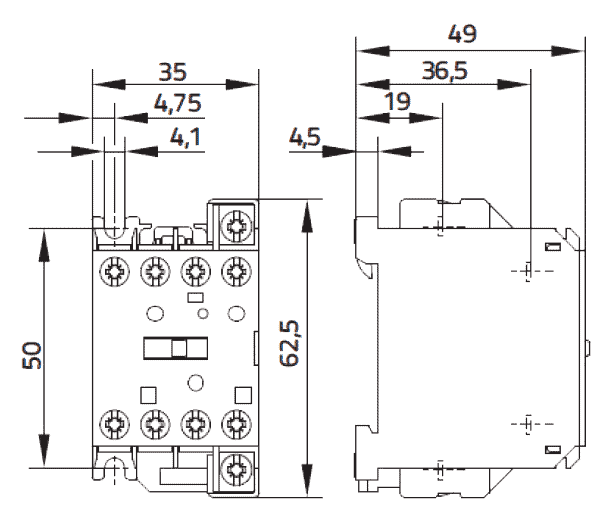

K03

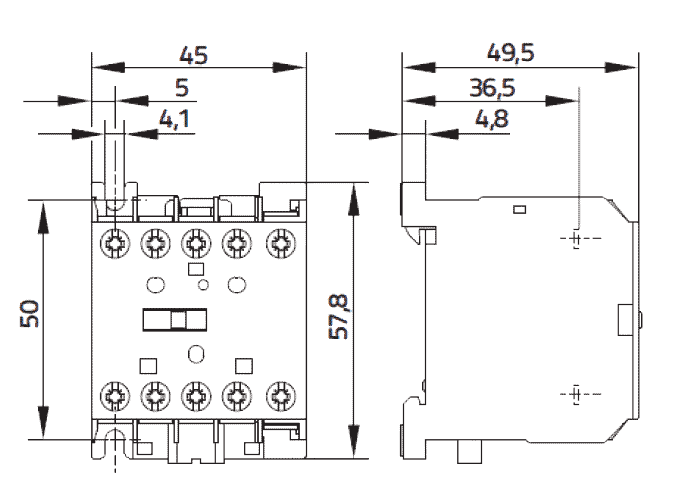

K07 – K08

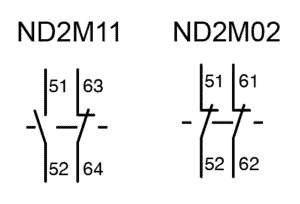

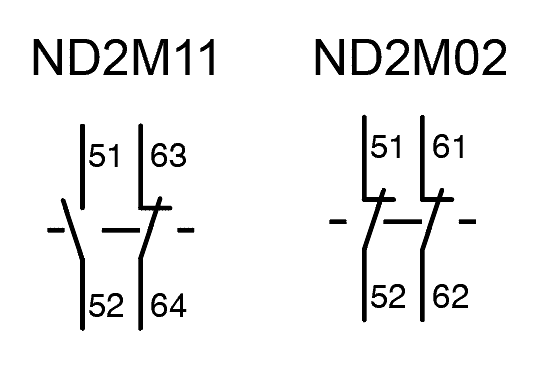

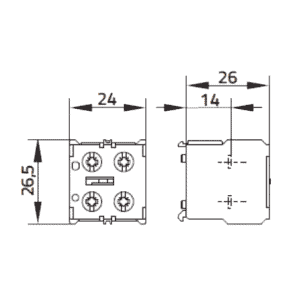

ND2

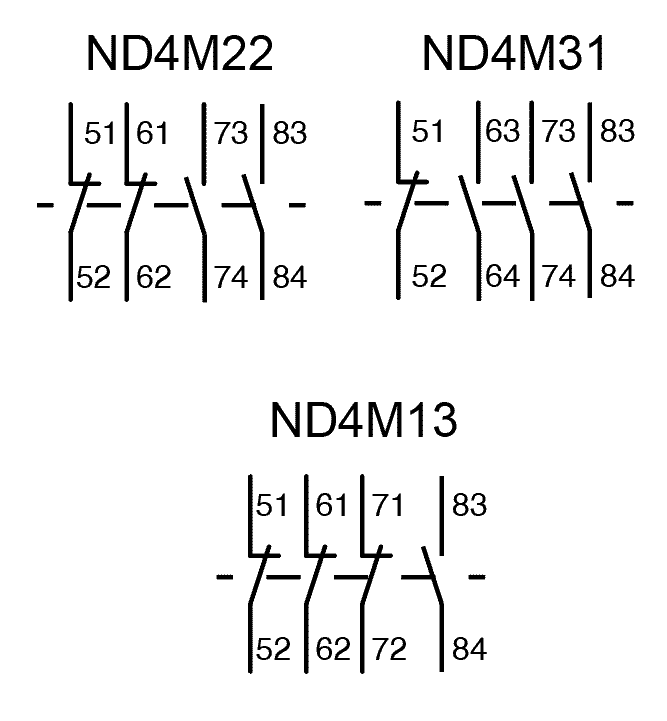

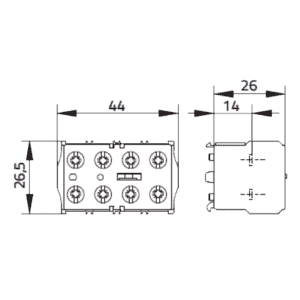

ND4

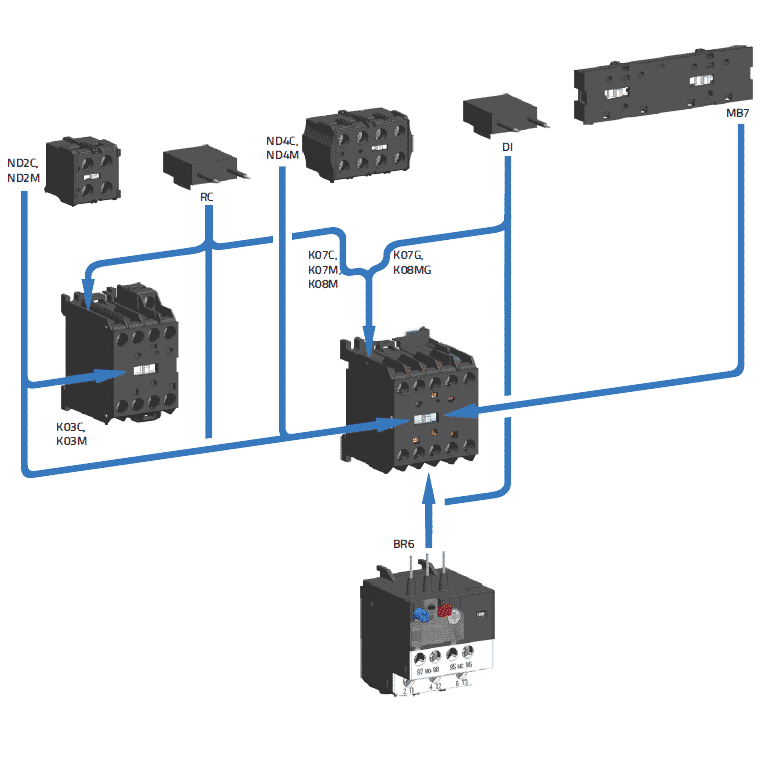

Mounting
