Mini clamps
Mini terminals in self-extinguishing polyamide 6.6.
Mini clamps
General Features
- Double level line-up terminal 6.6 polyamide selfexstinguishable
- Color RAL 1014
- Mounting on rail DIN 32/35
- Suitable for use in temperature range from -40° to +100° C
- They are protected against atmospheric corroding agents
Standards
Approvals

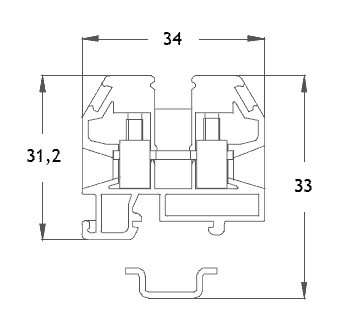

2,5 mmq
- Nominal Current A 24
- Rated Voltage V 440
- Thickness 5mm
- KP 4 PAM separators
- Pack of 100 pcs
| Code | Color |
|---|---|
| VS 2,5 PAM | Grey |
| VS 2,5 PAM N | Blue |
| VS 2,5 PAM + | Red |

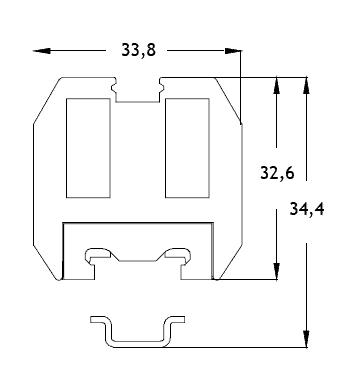

4 mmq
- Nominal Current A 32
- Rated Voltage V 440
- Thickness 6mm
- KP 4 PAM separators
- Pack of 100 pcs
| Code | Color |
|---|---|
| VS 4 PAM | Grey |
| VS 4 PAMN | Blue |
| VS 4 PAM+ | Red |
| VS 4 PEM | Yellow green |
