Flush button

Pulsanti Rasati diametro 22 tipo ER e luminosi tipo ERL

Flush button

Pulsanti Rasati diametro 22 tipo ER e luminosi tipo ERL

General Features

Pulsanti Rasati diametro 22 tipo ER e luminosi tipo ERL

Degree of Protection: IP55 with IP65 protection.
Mechanical Life: ER – ERR – ERL : 3.000.000

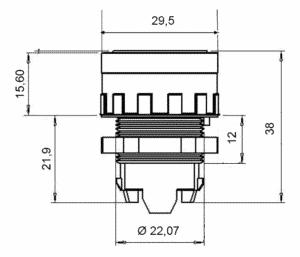

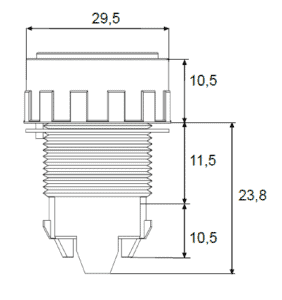

Drilling for mounting (hole Ø22,5 mm)

Standards

Approvals

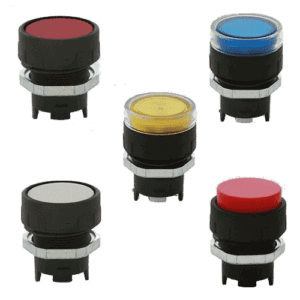

Flush Button Extended button Illuminated flush button

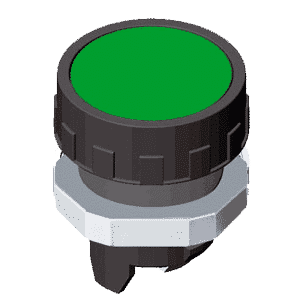

Normal Flush Button

Colors

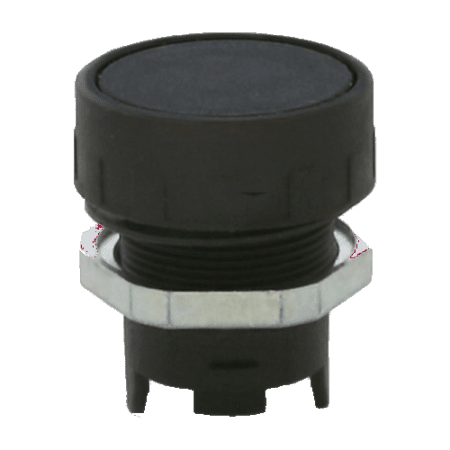

ER1 - Black

ER1 – Black

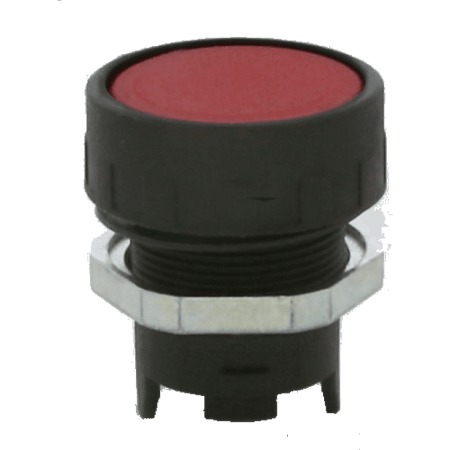

ER2 - Red

ER2 – Red

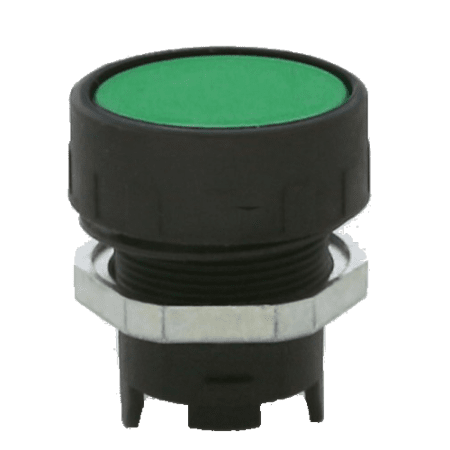

ER3 - Green

ER3 – Green

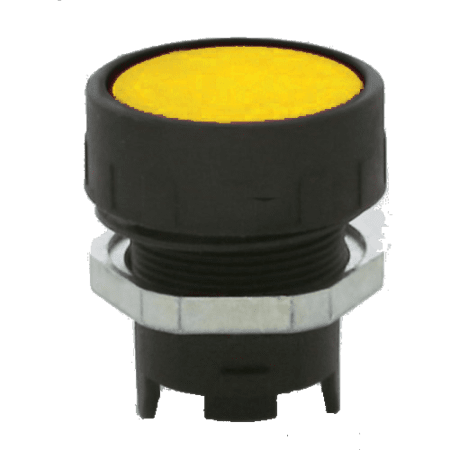

ER4 - Yellow

ER4 – Yellow

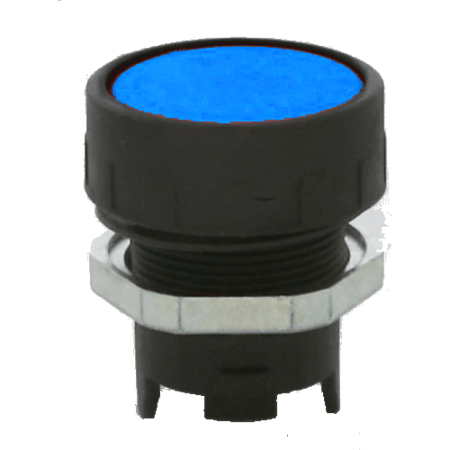

ER5 - Blue

ER5 – Blue

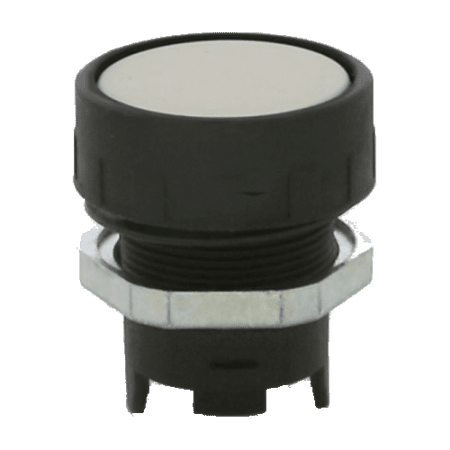

ER6 - White

ER6 – White

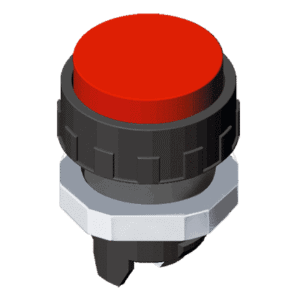

Raised Button

Colors

ERR1 - Black

ERR1 – Black

ERR2 - Red

ERR2 – Red

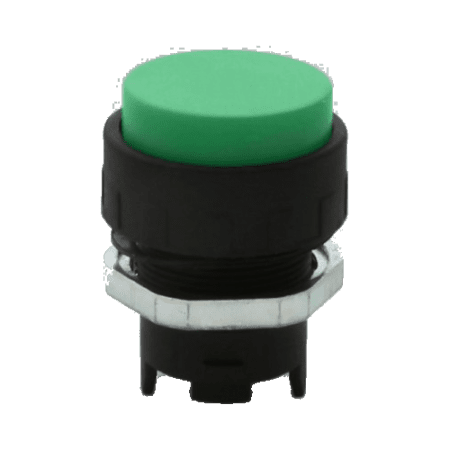

ERR3 - Green

ERR3 – Green

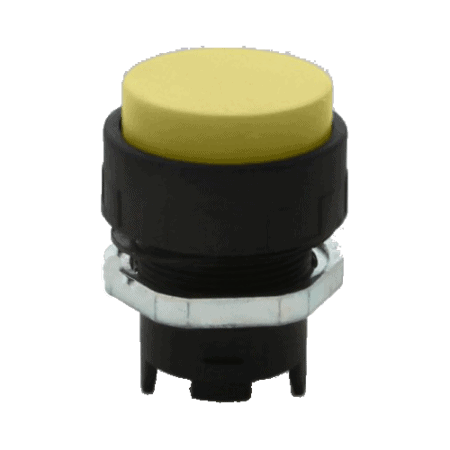

ERR4 - Yellow

ERR4 – Yellow

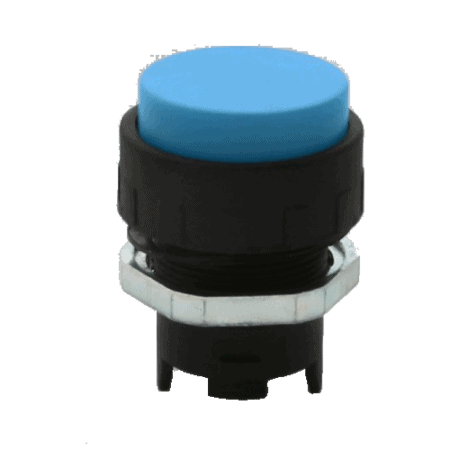

ERR5 - Blue

ERR5 – Blue

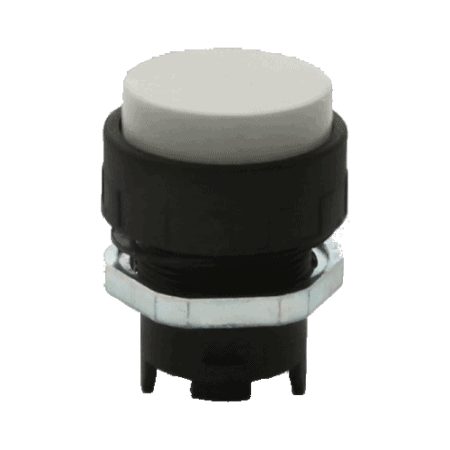

ERR6 - White

ERR6 – White

Illuminated flush button

Colors

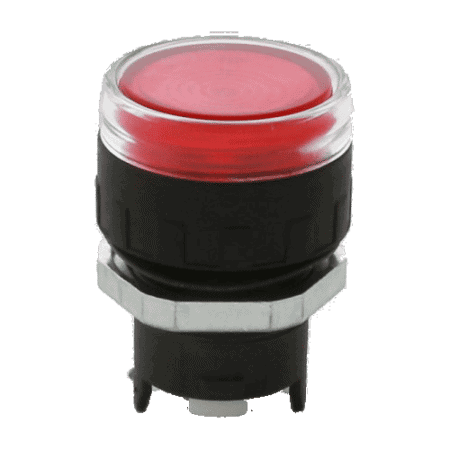

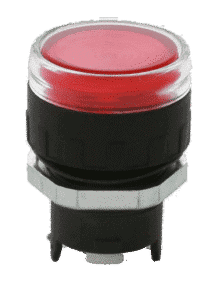

ERL2 - Red

ERL2 – Red

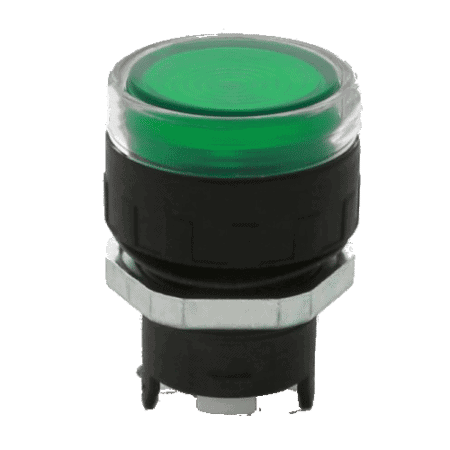

ERL3 - Green

ERL3 – Green

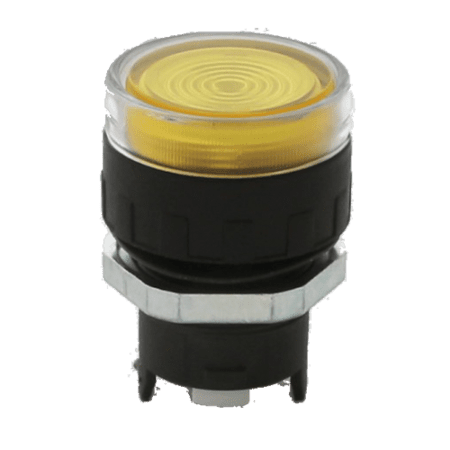

ERL4 - Yellow

ERL4 – Yellow

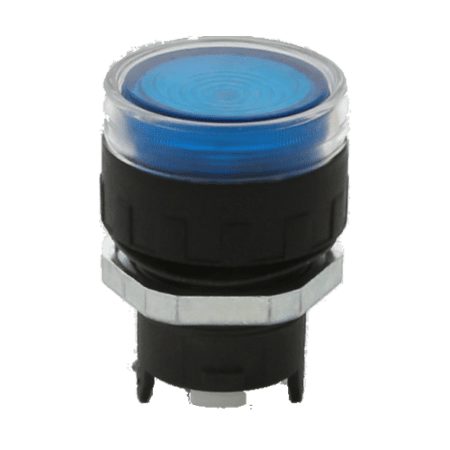

ERL5 - Blue

ERL5 – Blue

ERL6 - White

ERL6 – White

Accessories

Accessories and Contact blocks Protection cap Plates

Contact support

Contact block

Contact Block NO

Direct power supply Ba9s

Cap

Reductions

holes Ø30 Ø22

Symbols

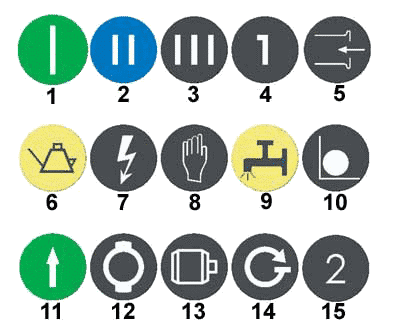

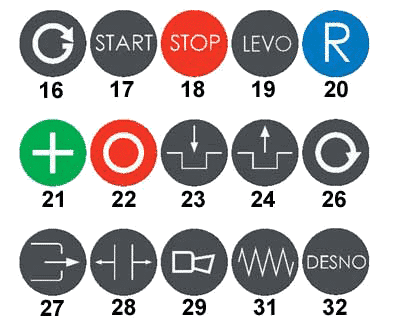

Symbols for flush button

Protection cap ERPR for Flush button

Protection cap

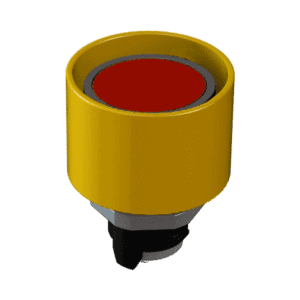

Protection PRS4 – PRS7

Protection cap – PRS4 (yellow) PRS7 (grey)

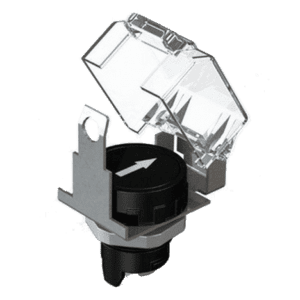

Protection PRL

Padlock cover PRL

Plates EQ8 EQ15

Plates Version EQ8 (8mm) and EQ15 (15mm).

Yellow Plate ED

Yellow Plates Blank or Stop/Emergency Diameter 40/50/60/90.
