DIAZED fuse holder
DIAZED fuse holder
DIAZED fuse holder
General Features
- Diazed Fuse Bases DI – DII – DIII
- Nominal voltage: 500 VAC – 500 VDC
- Screw terminals, with front cover
- Easily snap on EN 50022 rail or screw mounting
Standards
Approvals
| Type | Pole | Screw | In (A.) | Fixing | Packaging |
|---|---|---|---|---|---|
| EZN-25 | 1 | E27 | 25 | Guide | 15 |
| EZN-63 | 1 | E33 | 63 | Guide | 10 |
| EZV-25 | 1 | E27 | 25 | Screw | 15 |
| EZV-63 | 1 | E33 | 63 | Screw | 10 |
| EZN-25/3L | 3 | E27 | 25 | Guide | 4 |
| EZN-63/3L | 3 | E33 | 63 | Guide | 6 |
| EZV-25/3L | 3 | E27 | 25 | Screw | 4 |
| EZV-63/3L | 3 | E33 | 63 | Screw | 6 |
| EZN-25/3D | 3 | E27 | 25 | Guide | 8 |
| EZN-63/3D | 3 | E33 | 63 | Guide | 8 |
| EZV-25/3D | 3 | E27 | 25 | Screw | 8 |
| EZV-63/3D | 3 | E33 | 63 | Screw | 8 |

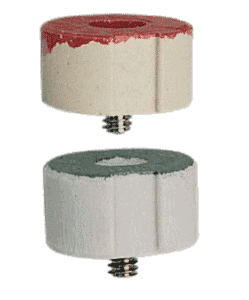

Reductions
| Type | In(A.) | Color | Packaging |
|---|---|---|---|
| VDII | 2 | pink | 25 |
| 4 | brown | 25 | |
| 6 | green | 25 | |
| 10 | red | 25 | |
| 16 | grey | 25 | |
| 20 | blue | 25 | |
| 25 | yellow | 25 | |
| VDIII | 35 | black | 25 |
| 50 | white | 25 | |
| 63 | copper | 25 |

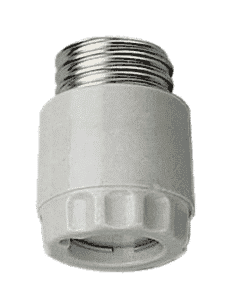

Caps
| Type | Screw | Packaging |
|---|---|---|
| KD II | E27 | 50 |
| KD III | E33 | 30 |
