Contactors KNL from 4 to 18,5 kW

Contactors KNL from 4 to 18,5 kW

Contactors KNL from 4 to 18,5 kW

  • Suitability for tropical climates According to IEC 60068-2-78 and IEC 60068-2-30
  • Mechanical endurance 10.000.000 op. c.
  • Max. mechanical operating frequency with no load c./h 3.000
  • Ambient temperature open from -25° to +55° – closed from -25° to +45°
  • Assembly to vertical or horizontal surface with ±20° deviation

Types

AC command screw connectionsKNL09-01 KNL09-10
KNL12-01 KNL12-10
KNL16-01 KNL16-10
KNL18-01 KNL18-10

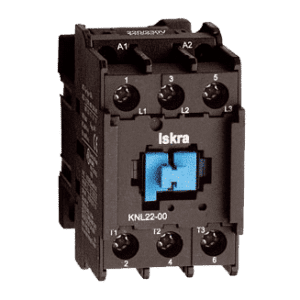

KNL22-00 KNL30-00 KNL38-00

AC
KNL09-10-sp4
KNL12-10-sp4
KNL16-10-sp4
KNL18-10-sp4
Volts 24 48 110/125 220/240 380/400
Tag B7 E7 F7 M7 Q7

Accessories

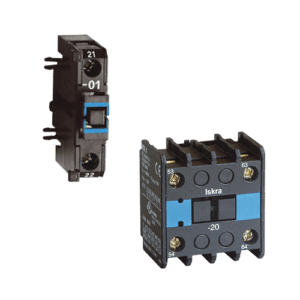

Auxiliary switch blocks NPL – NDL

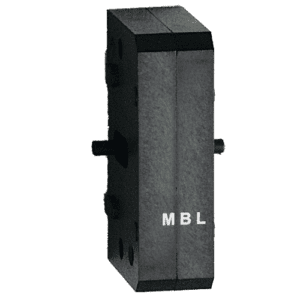

MBL43 mechanical interlock

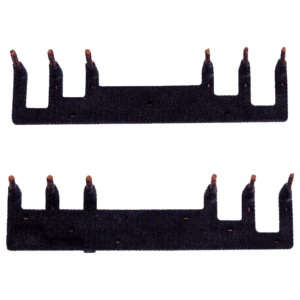

Connecting bars

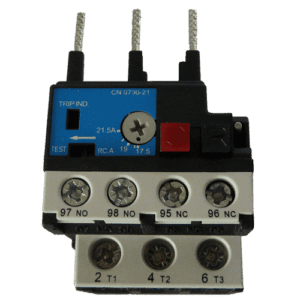

Thermal Overload Relay BR16 – BR30

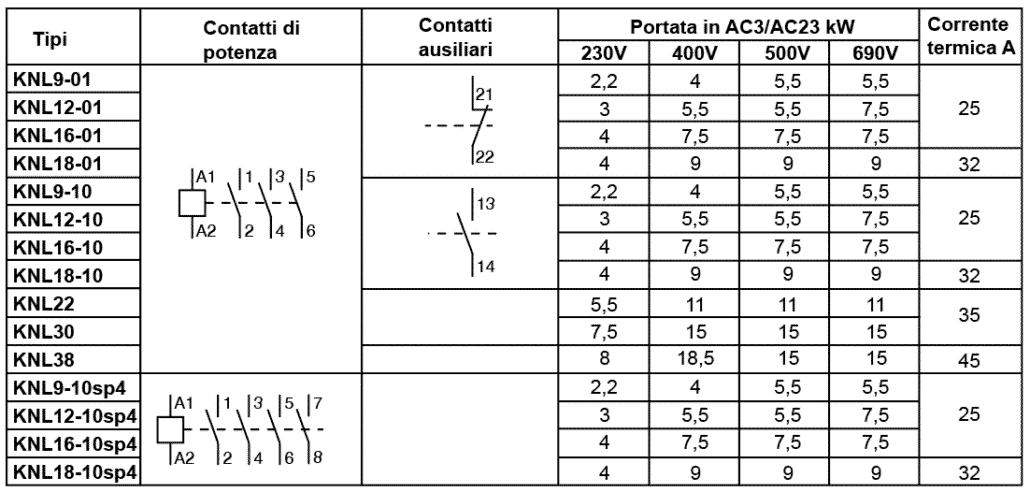

Technical Data

Contactors

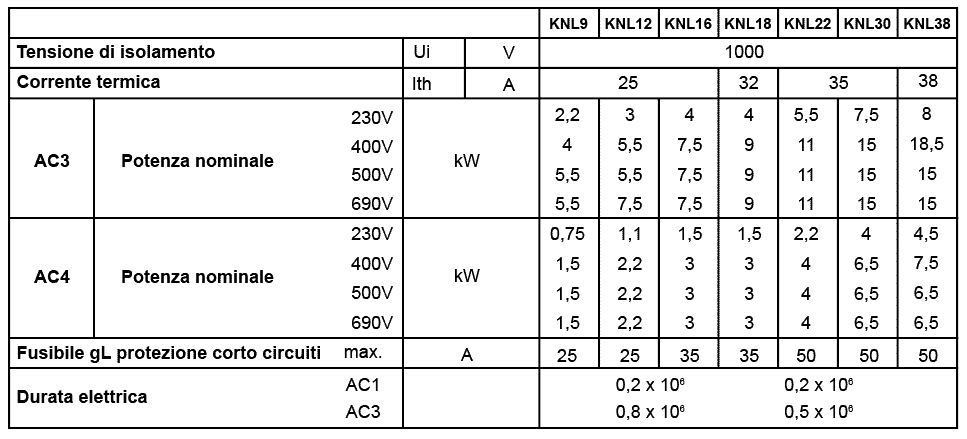

Main Circuit

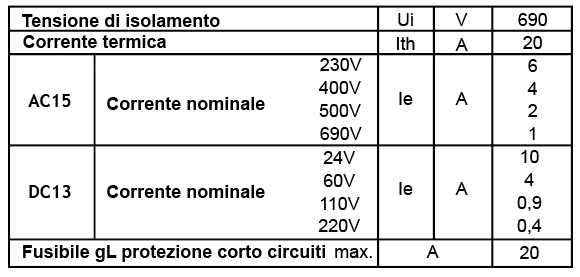

Auxiliary contacts

Dimensions

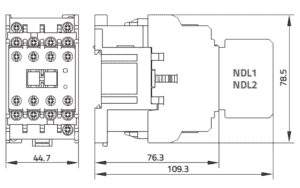

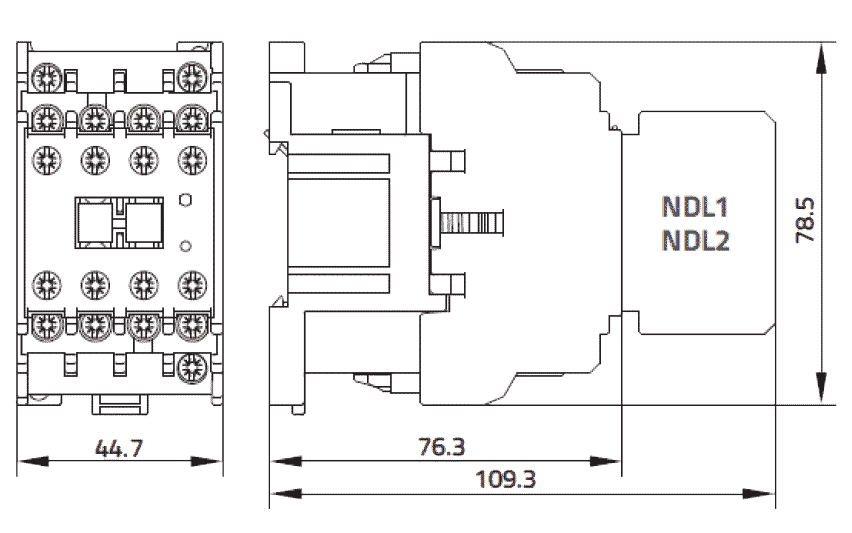

KNL 9 – KNL 12 KNL 16 – KNL 18

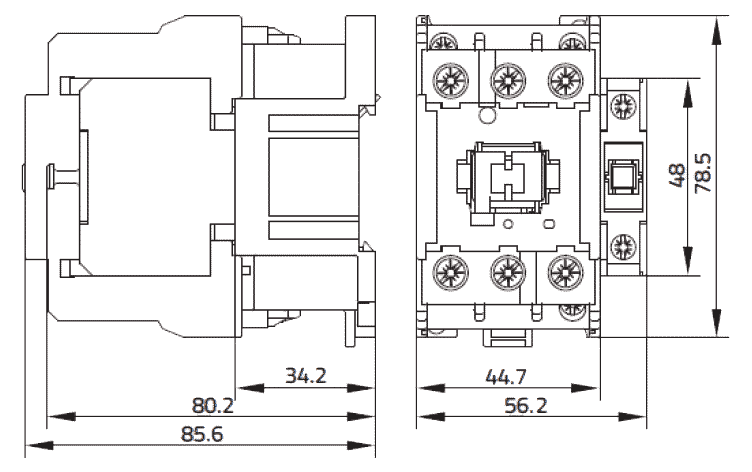

KNL22 – KNL30 – KNL38

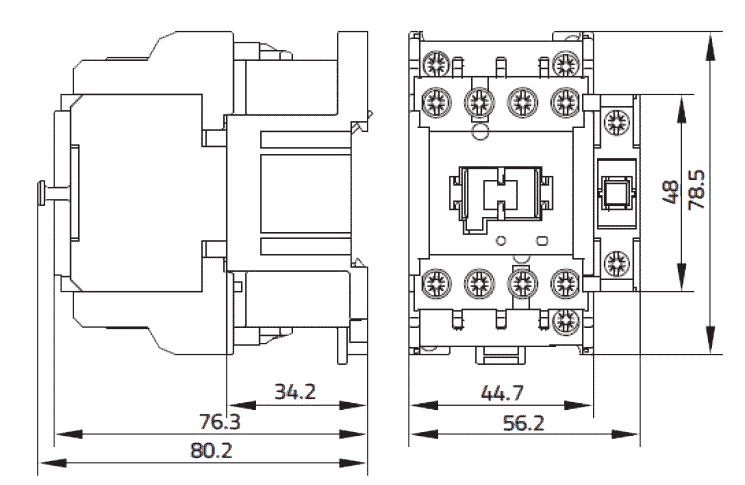

KNL 9 – KNL 12 KNL 16 – KNL 18

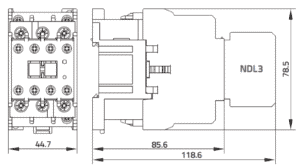

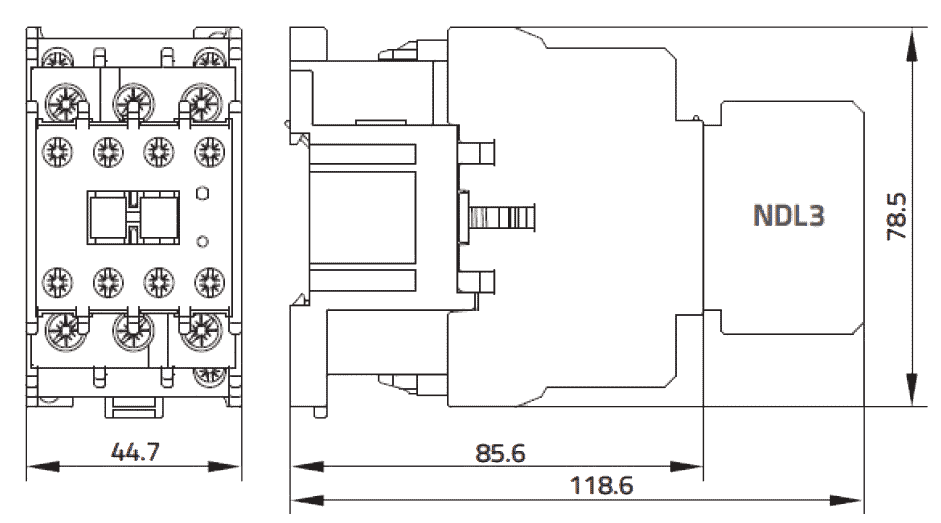

KNL22 – KNL30 – KNL38

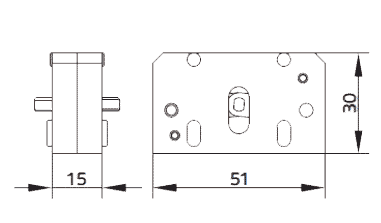

Mechanical interlock

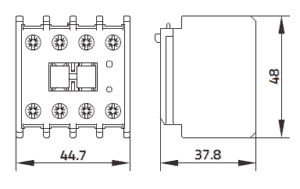

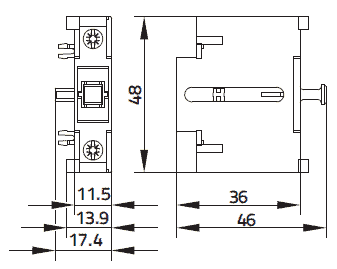

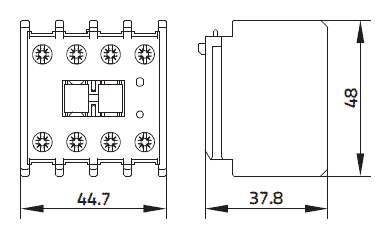

Auxiliary contacts

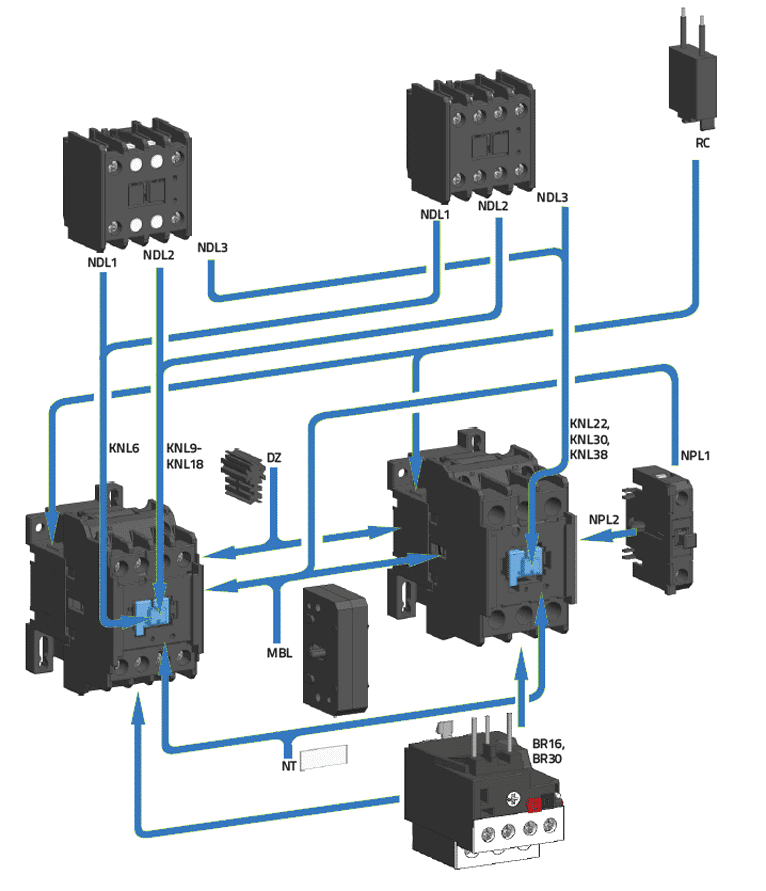

Mounting
