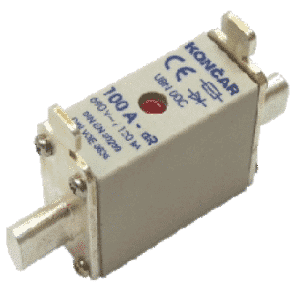

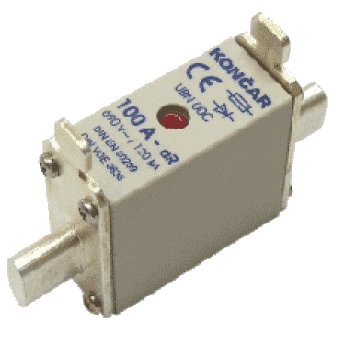

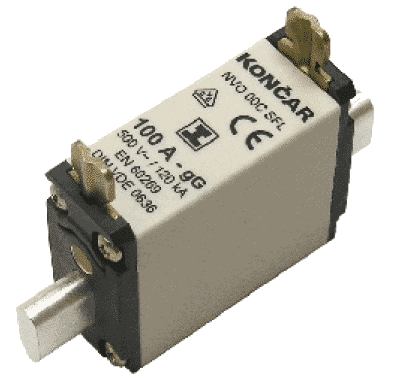

NH blade type cartridge fuse

NH blade type cartridge fuse – type gG and aM

NH blade type cartridge fuse

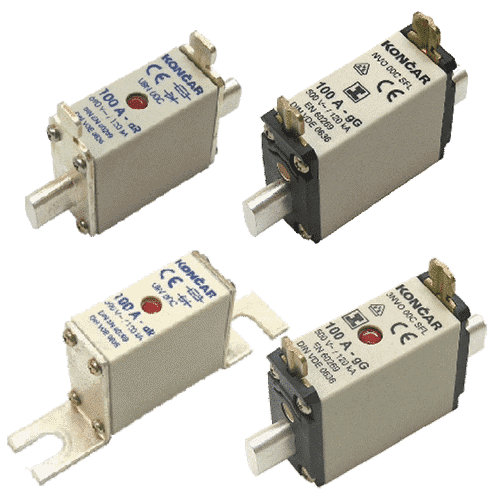

75-gruppo-nh

General Features

Nominal Voltage: 500/660 VAC – 400 VDC
Rated breaking capacity: 120 kA/AC – 80 kA/DC

Standards

Approvals

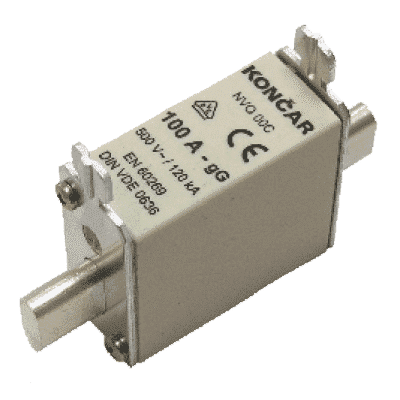

55-nh-tipi

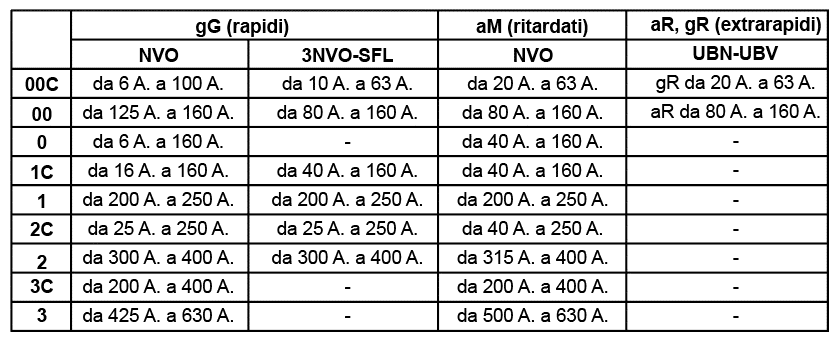

Fuse size Dimensions Characteristics

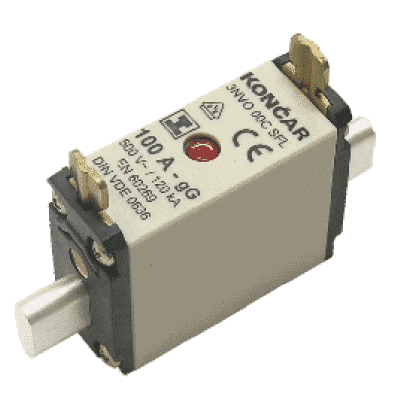

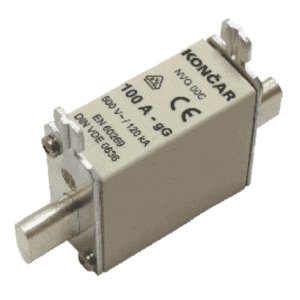

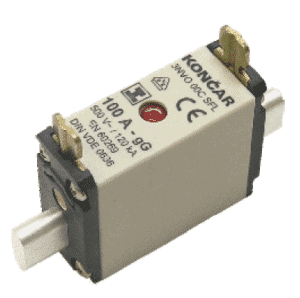

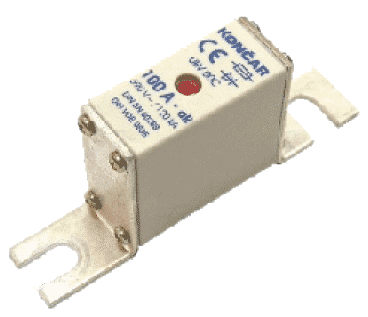

Size 00

Type	In(A.)	gG	aM	gR	Packaging
NVO-00C	6	x		x	3
	10	x		x	3
	16	x	x	x	3
	20	x	x	x	3
	25	x	x	x	3
	32	x	x	x	3
	35	x	x	x	3
	40	x	x	x	3
	50	x	x	x	3
	63	x	x	x	3
	80	x	x	x	3
	100	x	x	x	3
NVO-00	125	x	x	x	3
NVO-00	160	x	x		3

Size 0

Type	In(A.)	gG	aM	gR	Packaging
NVO-0	6	x		x	3
	10	x		x	3
	16	x		x	3
	20	x		x	3
	25	x		x	3
	32	x		x	3
	40	x	x	x	3
	50	x	x	x	3
	63	x	x	x	3
	80	x	x	x	3
	100	x	x	x	3
	125	x	x	x	3
	160	x	x	x	3

Size 1

Type	In(A.)	gG	aM	gR	Packaging
NVO-1C	16	x			3
	20	x			3
	25	x			3
	32	x		x	3
	40	x	x	x	3
	50	x	x	x	3
	63	x	x	x	3
	80	x	x	x	3
	100	x	x	x	3
	125	x	x	x	3
	160	x	x	x	3
NVO-1	200	x	x	x	3
	225	x	x	x	3
	250	x	x	x	3

Size 2

Type	In(A.)	gG	aM	gR	Packaging
NVO-2C	25	x			3
	32	x			3
	35	x			3
	40	x	x		3
	50	x	x		3
	63	x	x		3
	80	x	x	x	3
	100	x	x	x	3
	125	x	x	x	3
	160	x	x	x	3
	200	x	x	x	3
	225	x	x	x	3
	250	x	x	x	3
NVO-2	315	x	x	x	3
	355	x	x	x	3
	400	x	x	x	3

Size 3

Type	In(A.)	gG	aM	gR	Packaging
NVO-3C	200	x	x		3
	225	x	x		3
	250	x	x	x	3
	315	x	x	x	3
	355	x	x	x	3
	400	x	x	x	3
NVO-3	425	x		x	3
	450	x		x	3
	500	x	x	x	3
	630	x	x	x	3

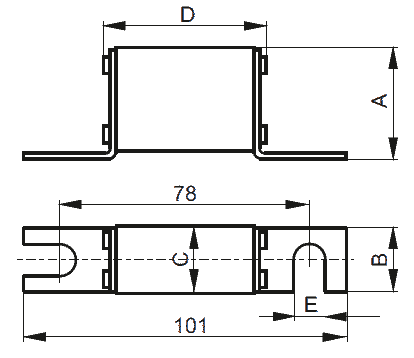

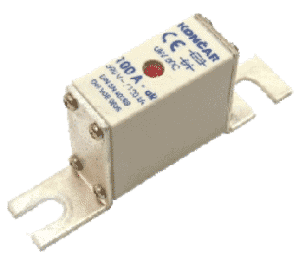

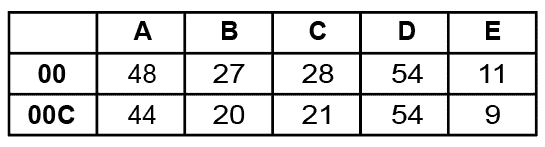

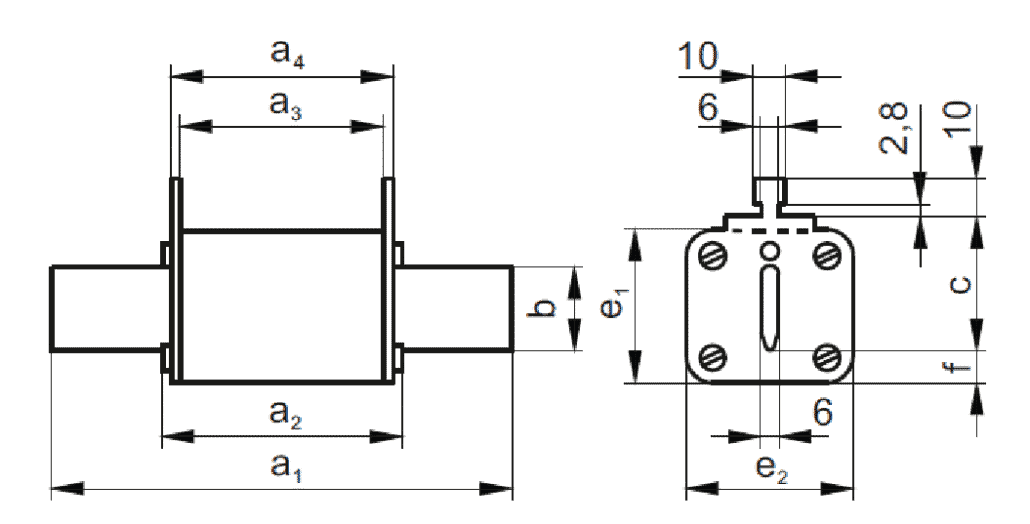

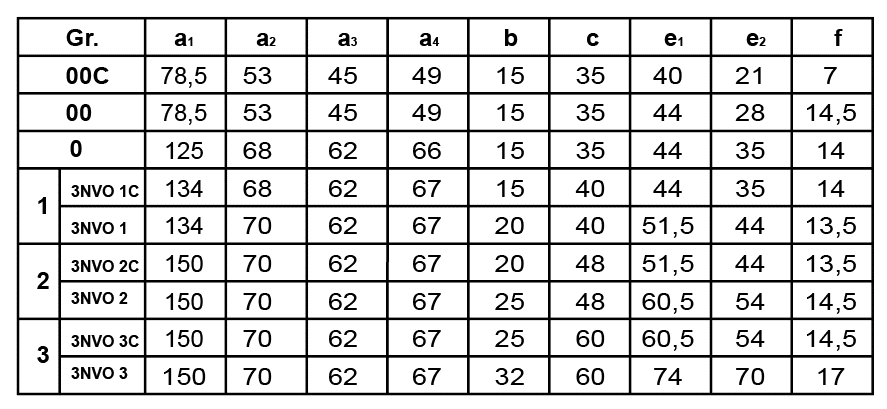

Dimensions

Fuse gG

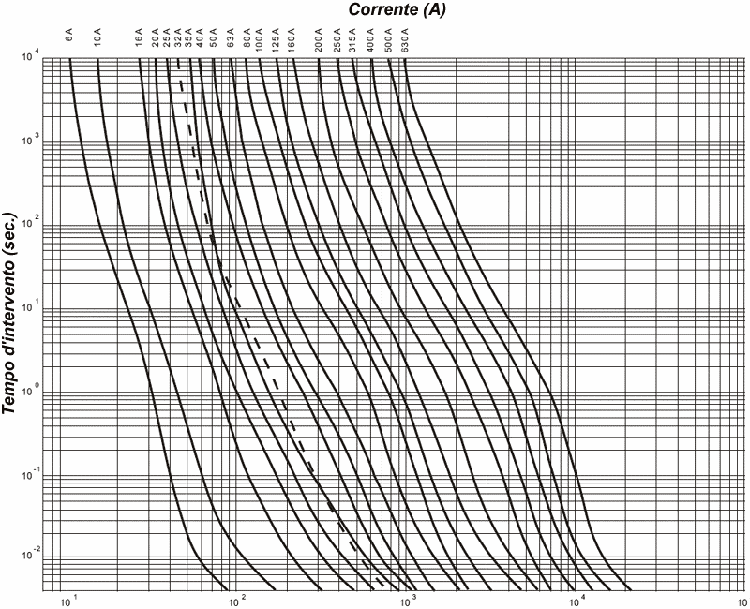

Time-current characteristics

Fuse aM

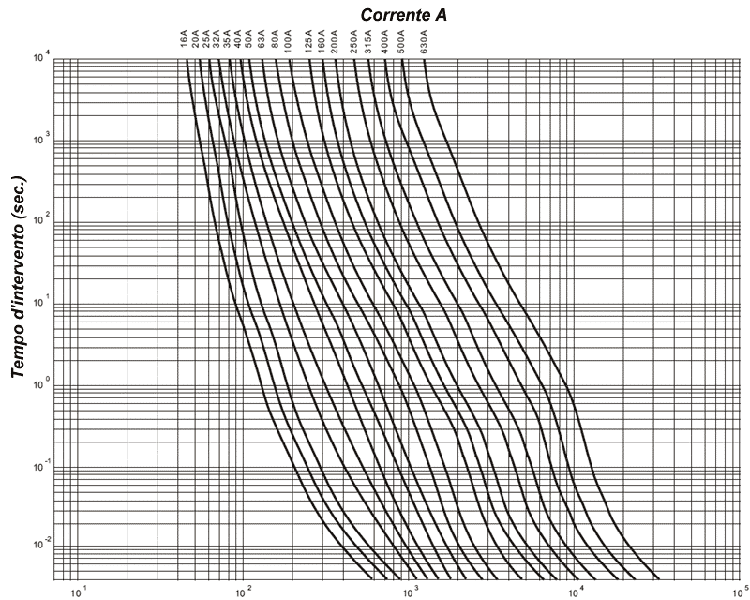

Time-current characteristics

Fuse aR

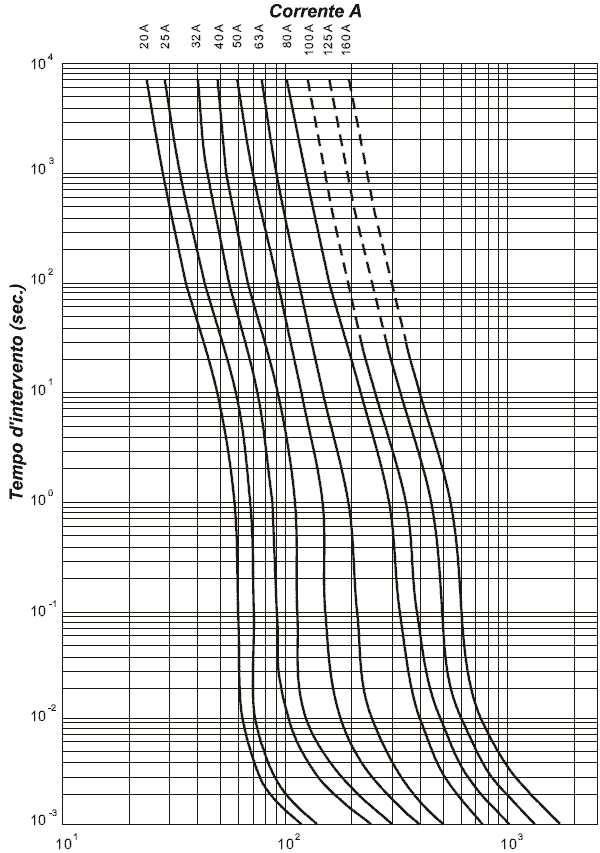

Time-current characteristics

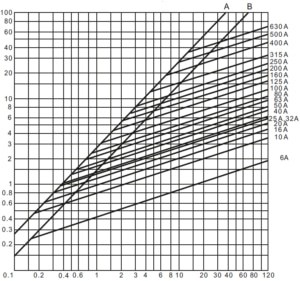

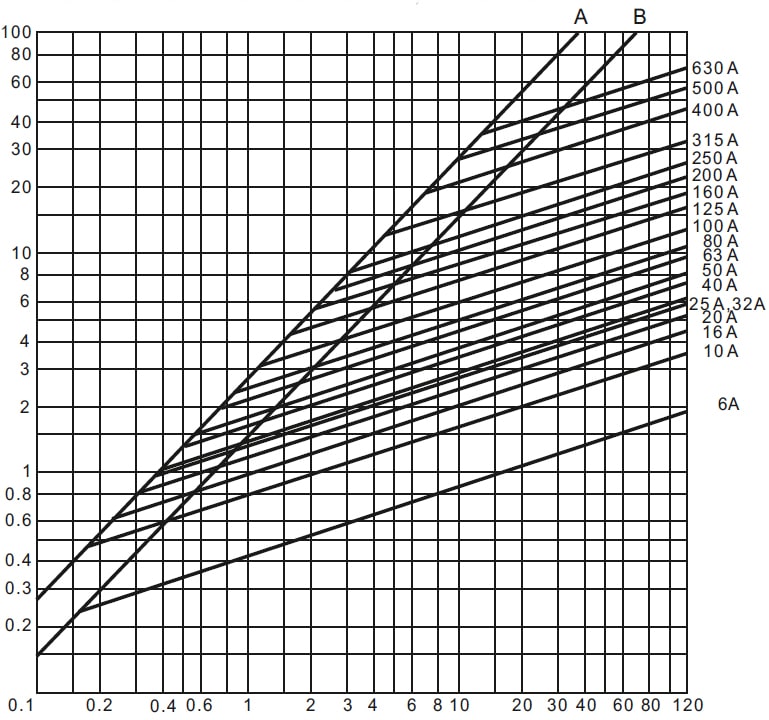

Cut-off characteristics
