Ground terminals
Ground terminals in self-extinguishing polyamide 6.6.
Ground terminals
General Features
- Double level line-up terminal 6.6 polyamide selfexstinguishable
- Color RAL 1014
- Mounting on rail DIN 32/35
- Suitable for use in temperature range from -40° to +100° C
- They are protected against atmospheric corroding agents
Standards
Approvals
2,5 mmq
- Nominal Current A 24
- Rated Voltage V 440
- Thickness 6mm
- KP 4 PAM separators
- Pack 50 pcs
| Code | Color |
|---|---|
| VS 2.5 PE2 | Grey Yellow/Green |
| VS 2.5 PE3 | Grey Yellow/Green |

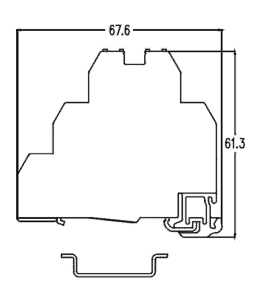

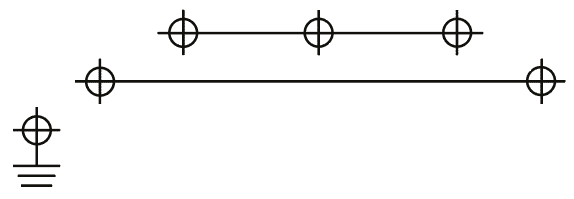

VS 2.5 PE2

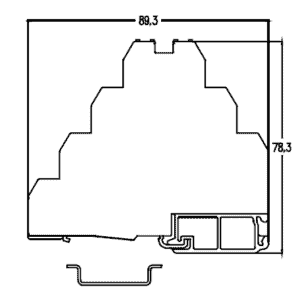

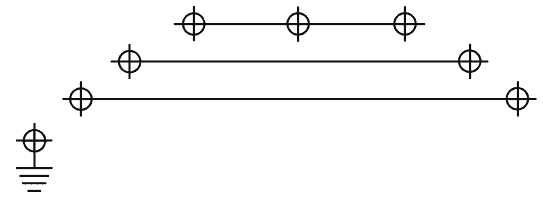

VS 2.5 PE3
