Contactors up to 30 kW
Contactors AC power – 50/60 Hz from 22 to 30 kW

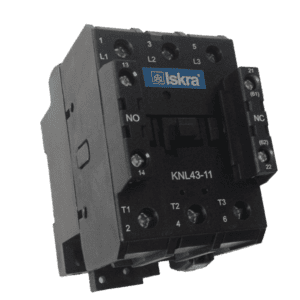

Contactors KNL up to 30 kW
Contactors AC power – 50/60 Hz from 22 to 30 kW
General Features
- Mechanical endurance 3.000.000 op. c.
- Max. mechanical operating frequency with no load c./h 3.000
- Ambient temperature open from -20° to +60° – closed from -20° to +45°

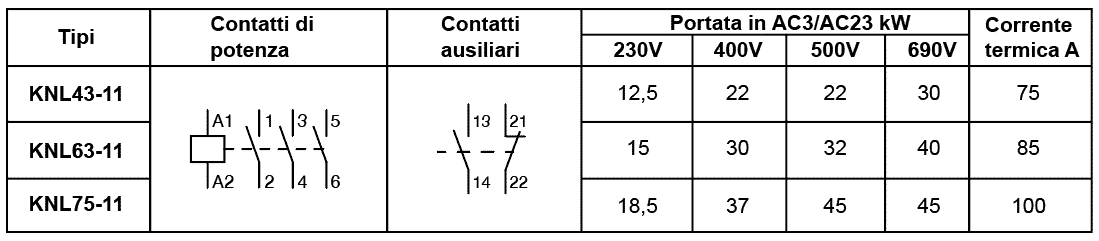

Technical Data
Standards
Approvals
Types
| AC command screw connections | KNL43-11 KNL63-11 |
Standard control voltages AC 50/60 Hz
| Volts | 24 | 48 | 110/125 | 220/240 | 380/400 |
| Tag | B7 | E7 | F7 | M7 | Q7 |
Accessories

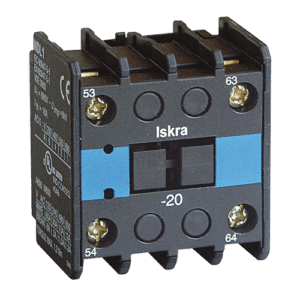

Auxiliary Switch ND4
Mechanical interlock MBL43
Thermal Overload Relay BR63

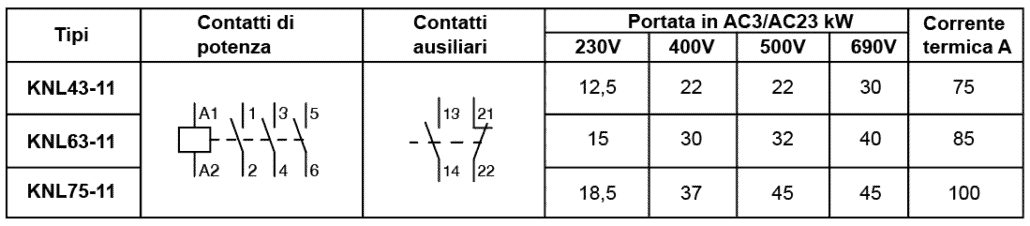

Technical Data
Contactors

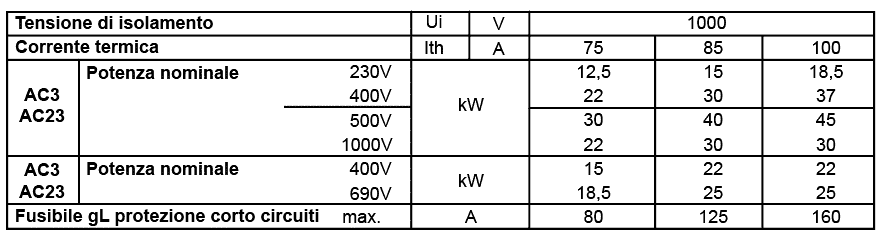

Main Circuit

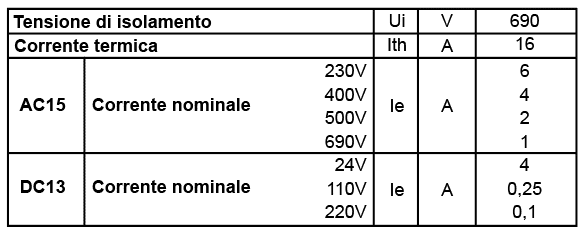

Auxiliary contacts

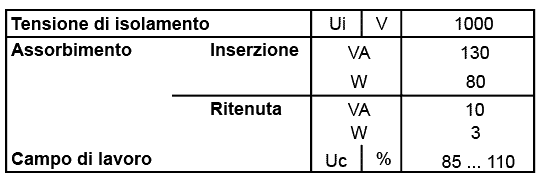

Magnetic System

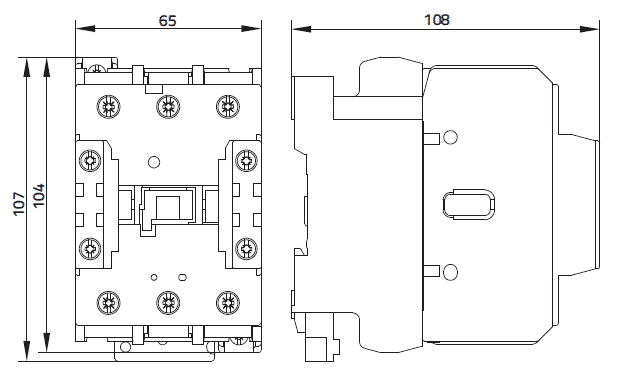

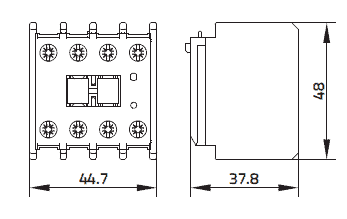

Dimensions
Contactors

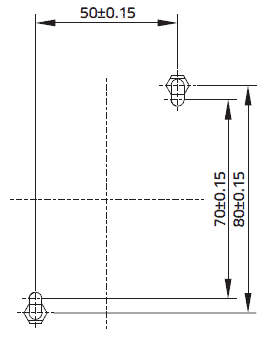

Fixing holes
Auxiliary contacts

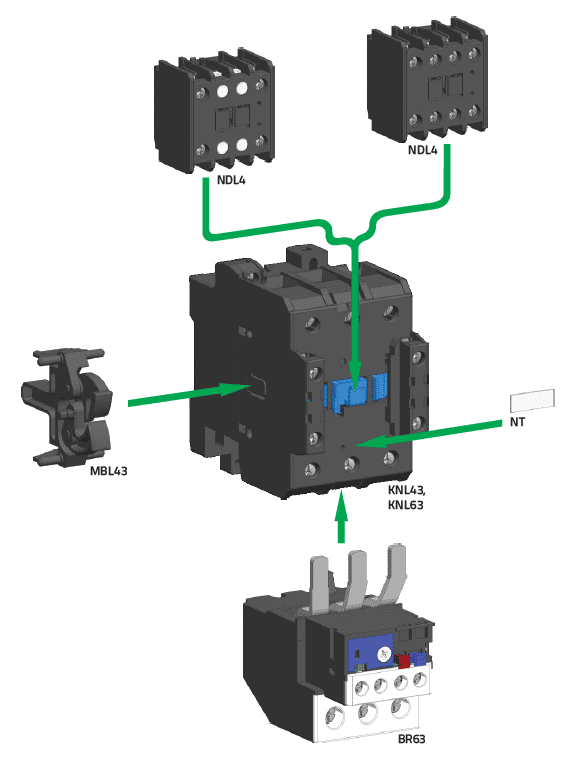

Mounting
