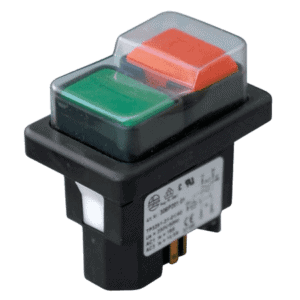

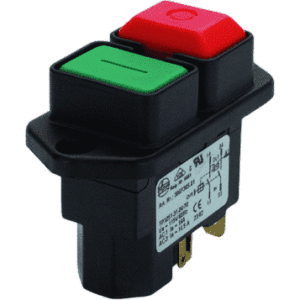

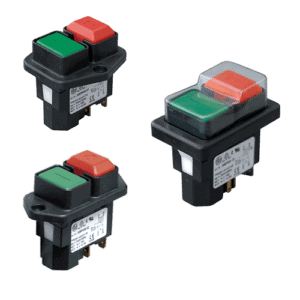

Two Pole switch with buttons
Two Pole switch with buttons
Two Pole switch with buttons
General Features
- rocker-actuated two pole On/Off switch

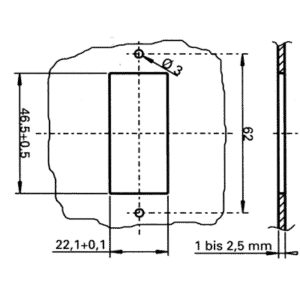

- Screws mounting or latched fastening
- Connection: Faston 6,3 mm
- Rate operational current Ie: AC1 16A – 230 V AC3 14,5A – 230V
Standards
Approvals

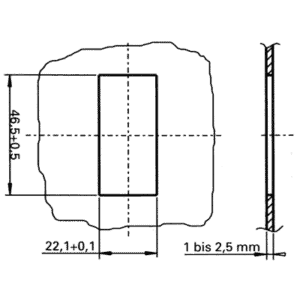

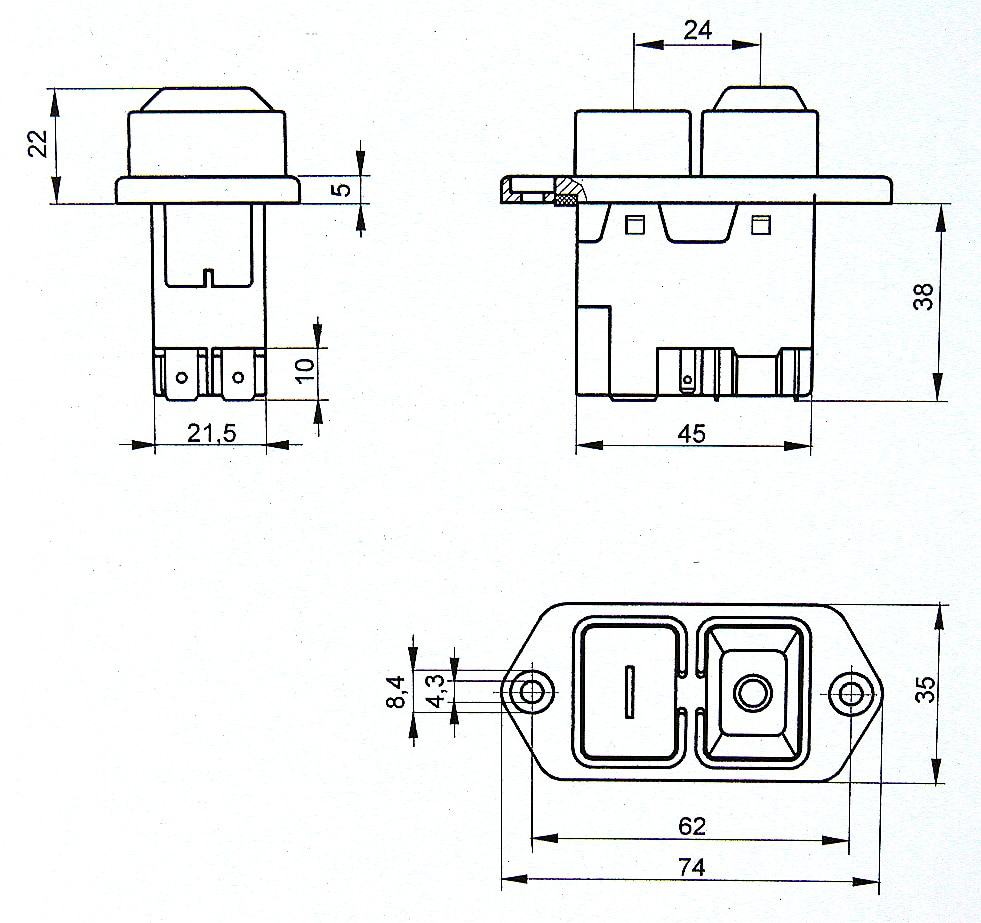

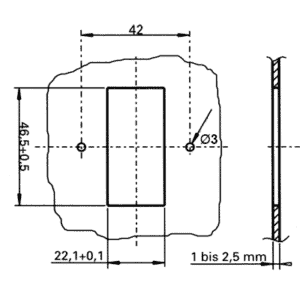

vertical fixing
| Code | Tension | Protection cover | Diagram |
|---|---|---|---|
| 306P300.02 | 230 V. – 50 Hz. | IP 54 | A |
| 306P301.01 | 115 V. – 50 Hz. | IP 54 | A |
| 306P302.01 | 115 V. – 60 Hz. | IP 54 | A |
| 306P303.01 | 230 V. – 50 Hz. | IP 54 | B |
| 306P304.01 | 115 V. – 50 Hz. | IP 54 | B |
| 306P305.01 | 115 V. – 60 Hz. | IP 54 | B |

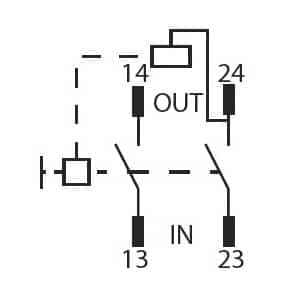

Scheme A

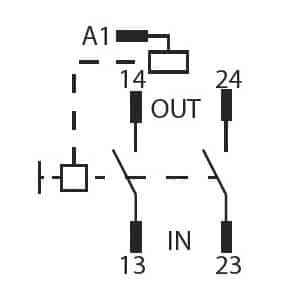

Scheme B
Accessories

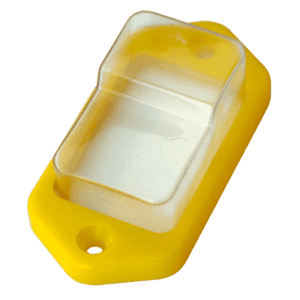

Push button cover PA62

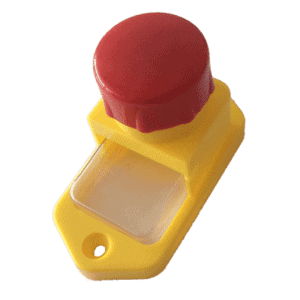

Frame with Mushroom head button PF62

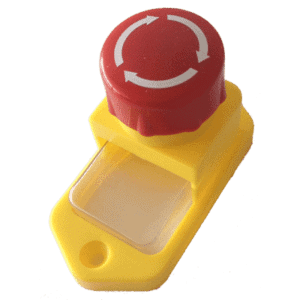

Frame with Mushroom head button with turn reset PFB62

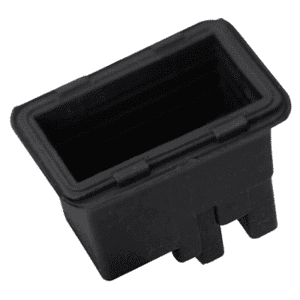

Rear Protection PP

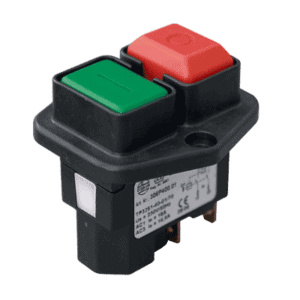

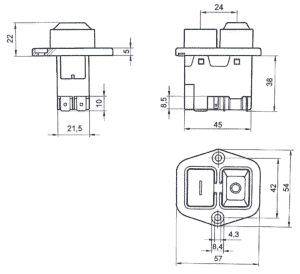

horizontal fixing
| Code | Tension | Protection cover | Diagram |
|---|---|---|---|
| 306P400.01 | 230 V. – 50 Hz. | IP 54 | A |
| 306P402.01 | 230 V. – 50 Hz. | IP 54 | B |
Scheme A
Scheme B
Accessories

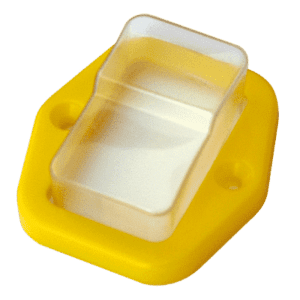

Push button cover PA42

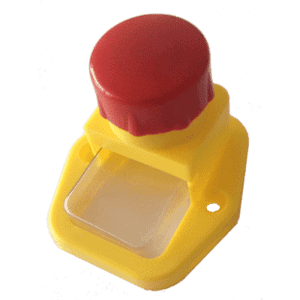

Frame with Mushroom head button PF42

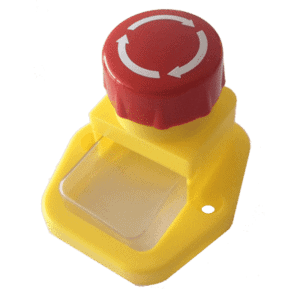

Frame with Mushroom head button with turn reset PFB42
Rear Protection PP

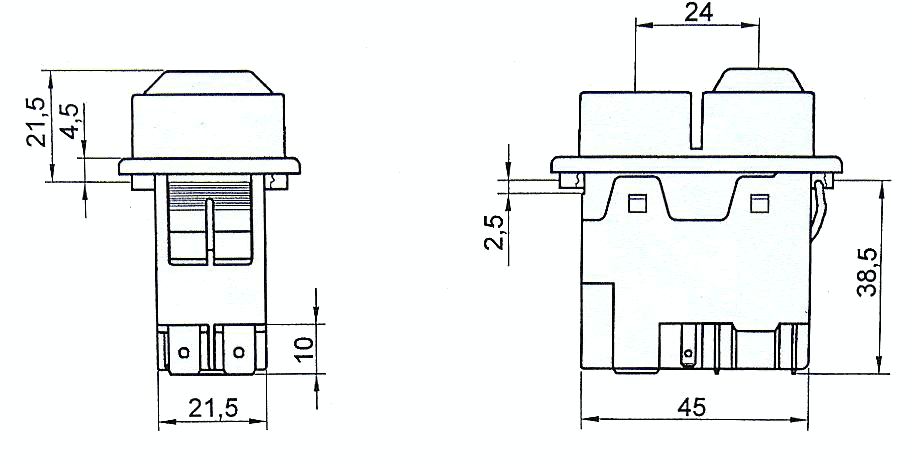

Latched fastening
| Code | Tension | Protection cover | Diagram |
|---|---|---|---|
| 306P202.01 | 230 V. – 50 Hz. | IP 65 | A |
| 306P201.01 | 230 V. – 50 Hz. | IP 65 | B |
Scheme B
Scheme A
Accessories
