Double level line-up terminal

Double level line-up terminal 6.6 polyamide selfexstinguishable

Double level line-up terminal blocks

General Features

Double level line-up terminal 6.6 polyamide selfexstinguishable
Color RAL 1014
Mounting on rail DIN 32/35
Suitable for use in temperature range from -40° to +100° C
They are protected against atmospheric corroding agents

Standards

Approvals

2,5 mmq 4 mmq NA 4 mmq NAI 4 mmq NAV 4 mmq NAE

2,5 mmq

Nominal Current A 24
Rated Voltage V 440
Thickness 6mm
End Plate KP4NA
Pack 50 pcs

Code	Color
VS 2,5 NA	Grey
VS 2,5 NAN	Blue
VS 2,5 NA+	Red

41-vs-doppio

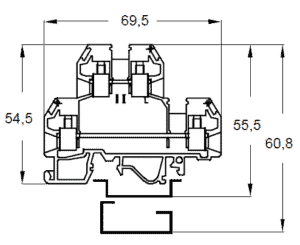

41-vs2na-mis

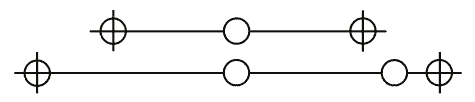

41-vs-25-na-connessioni

4 mmq NA

Nominal Current A 32
Rated Voltage V 440
Thickness 6mm
End Plate KP4NA – VP4PA
Pack 50 pcs

Code	Color
VS 4 NA	Grey
VS 4 NAN	Blue
VS 4 NA+	Red

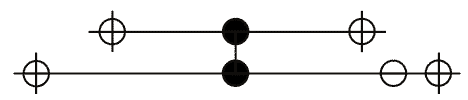

4 mmq NAI

Nominal Current A 32
Rated Voltage V 440
Thickness 6mm
End Plate KP4NA – VP4PA
Pack 50 pcs

Code	Color
VS 4 NAI	Grey
VS 4 NAI N	Blue
VS 4 NAI +	Red

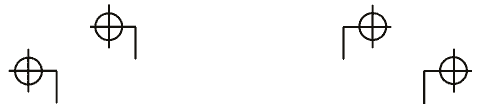

4 mmq NAV

Nominal Current A 32
Rated Voltage V 440
Thickness 6mm
End Plate KP4NA – VP4PA
Pack 50 pcs

Code	Color
VS 4 NAV	Grey
VS 4 NAV N	Blue
VS 4 NAV +	Red

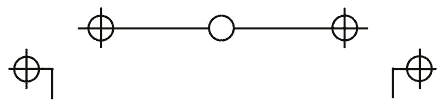

4 mmq NAE

Nominal Current A 32
Rated Voltage V 440
Thickness 6mm
End Plate KP4NA – VP4PA
Pack 50 pcs

Code	Color
VS 4 NAE	Grey
VS 4 NAE N	Blue
VS 4 NAE +	Red
