Motor Protection Switches

Motor protection circuit breakers are used for start-up and protection of electric motors.

Motor Protection Switches up to 25 A.

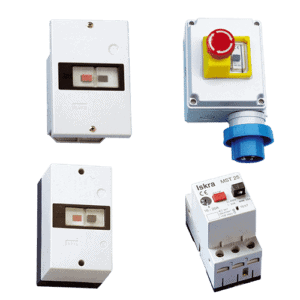

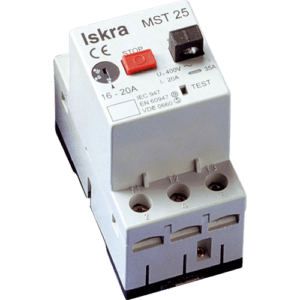

Motor Protection Switches MS25 up to 25 A.

Motor Protection Switches and enclosures

Motor circuit breakers are electromechanical protection devices for the main circuit or also for mounting in distribution boards. They are used to manually start/stop motors and to protect them from short circuit or overload. They are available in the single-phase or three-phase version with MS magnetothermic or MS-T thermal protection.

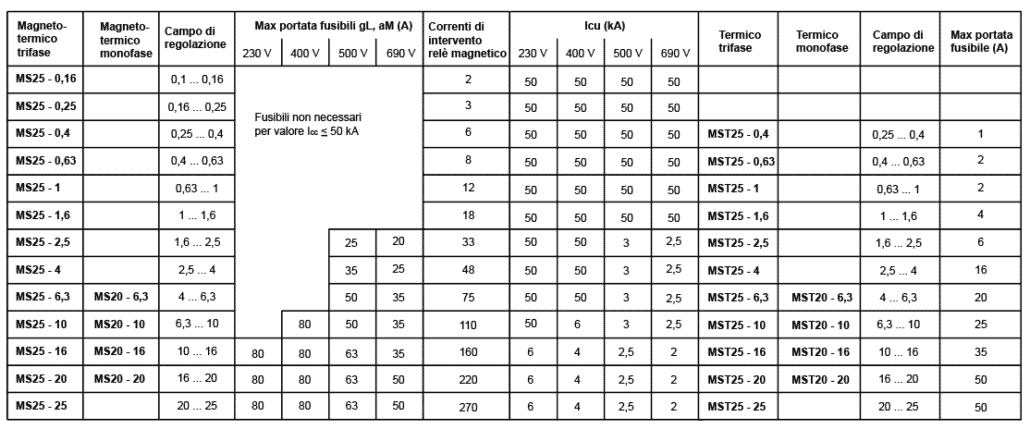

Technical Data

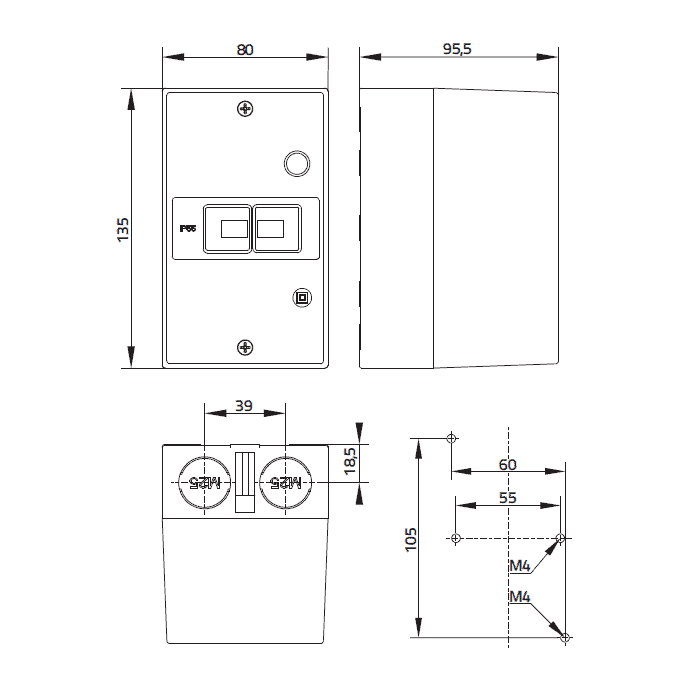

Dimensions

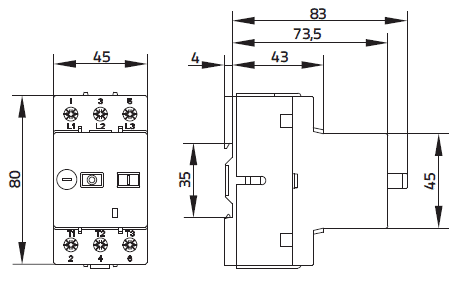

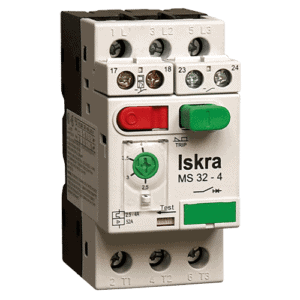

Motor Protection Switches MS20 – MS25

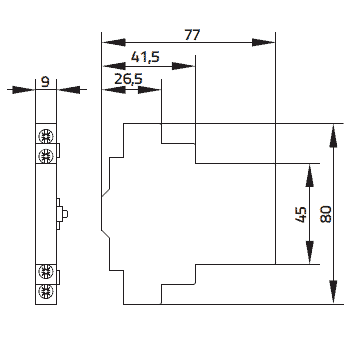

Auxiliary contact block for lateral mounting PS11

Enclosure MS/11

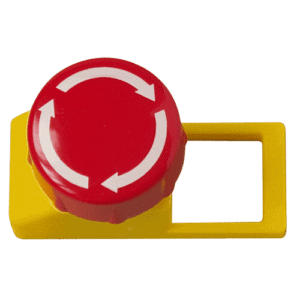

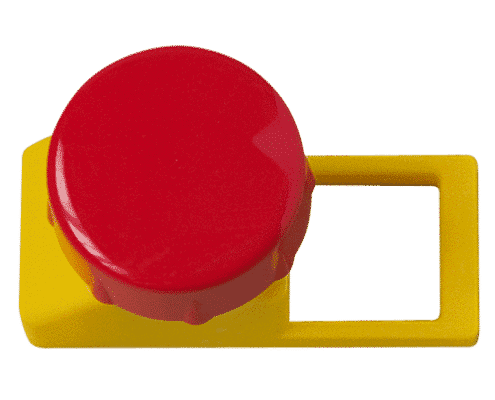

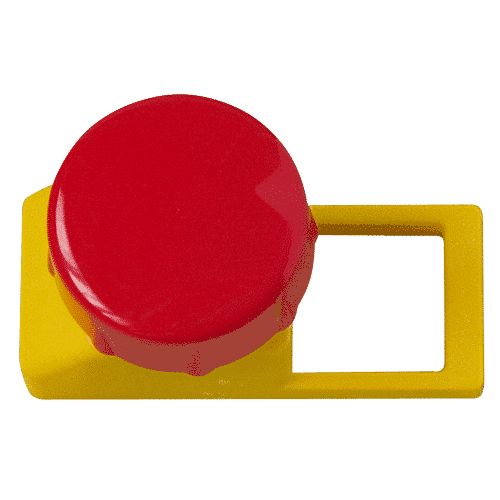

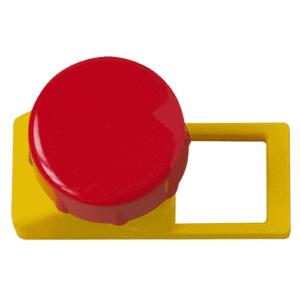

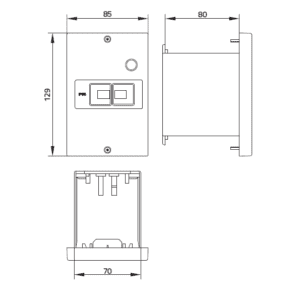

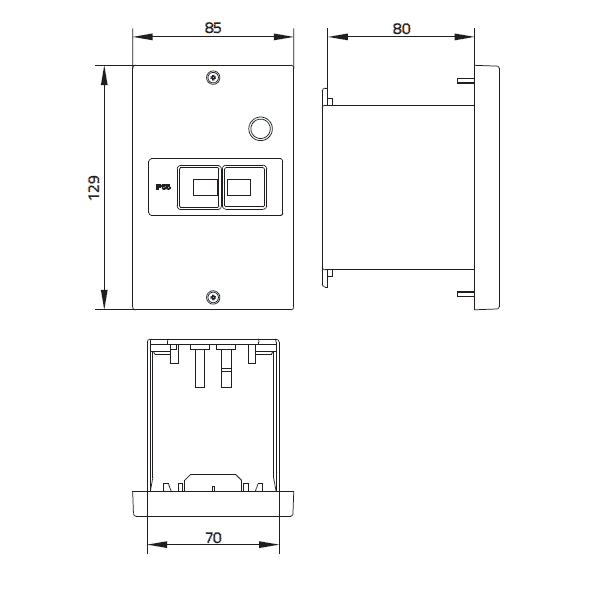

Front plate MS/13

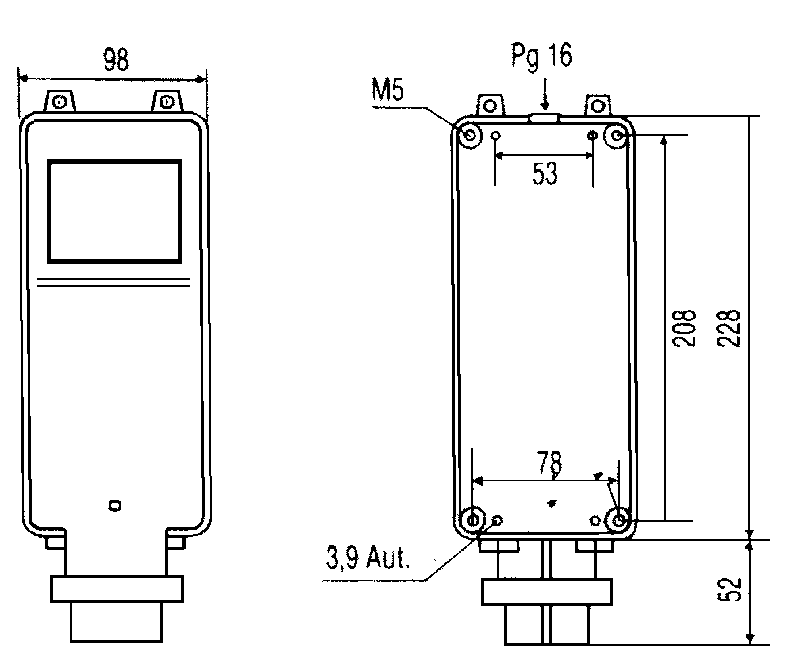

Enclosure type CO

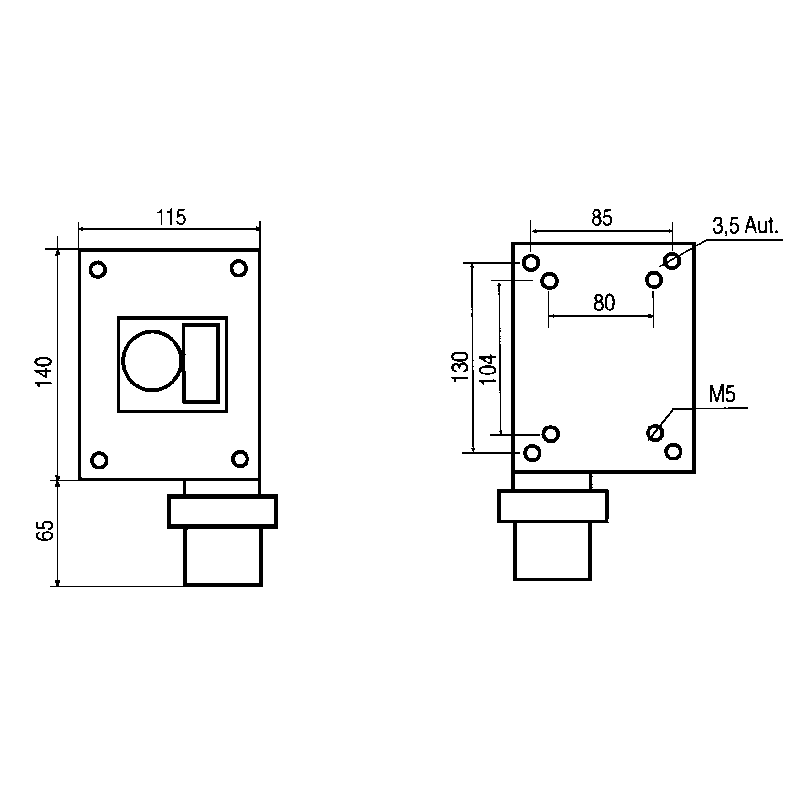

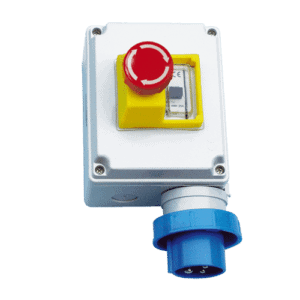

Enclosure type CS

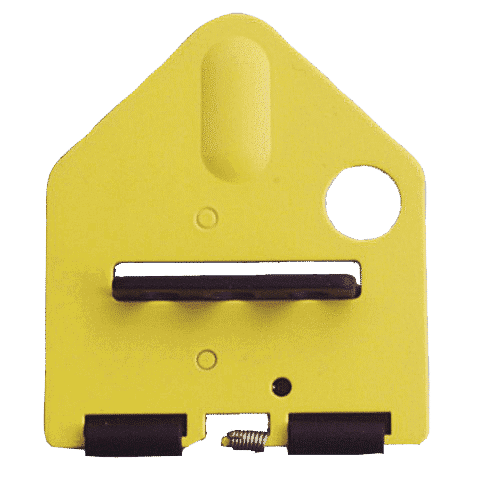

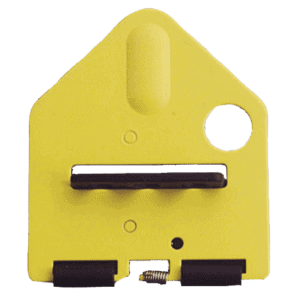

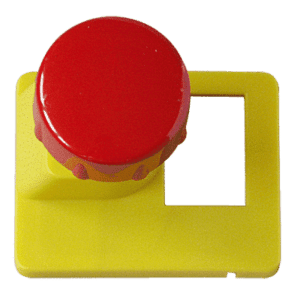

Accessories

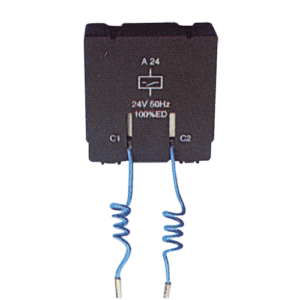

Under-voltage release

Auxiliary switch for lateral mounting

Under-voltage release – Shunt release

24 – 110 – 230 – 400 / 50Hz

Shunt release

24 – 230 / 50Hz

Enclosures

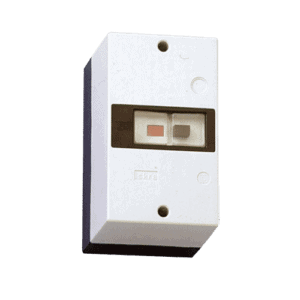

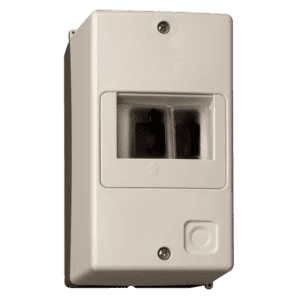

Enclosure MS/11

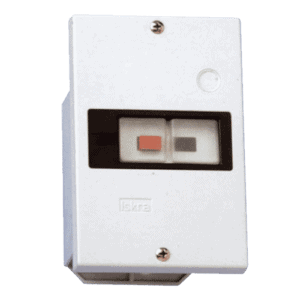

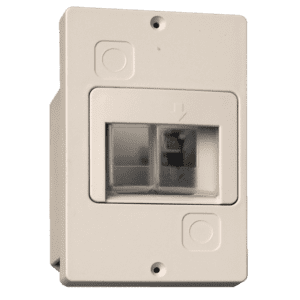

Front plate MS/13

Enclosures with CEE plug

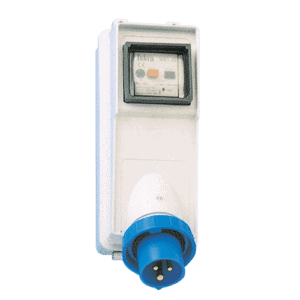

Enclosure type CO

Enclosure type CS
