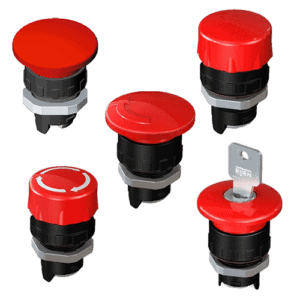

Mushroom head button

Mushroom head button emergency stop

Mushroom head button

Mushroom head button emergency stop.

The mushroom pushbuttons are widely used in the emergency stop functions (emergency stop), due to their shape, which makes them easily identifiable and operable.

Mushroom head button – Plastic units

  • Degree of mechanical protection: IP55
  • Mechanical Life: EF – EFL 3.000.000 – EFB – EFBL: 500.000

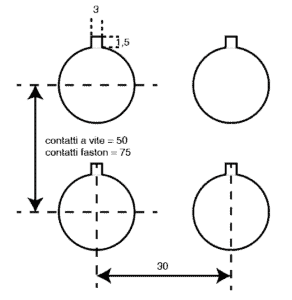

Drilling for mounting (hole Ø22,5 mm)

Datasheet

Class AC15
Rated insulation Ui=660V
Rated thermal current: Ith= 12 A

Ue 12 24 48 110 230 400 500 600
Ie 10 10 8,5 6,5 4,5 2,6 2,1 1,6
Ue 12 24 48 110 220
Ie 18 5 2,5 1,1 0,6

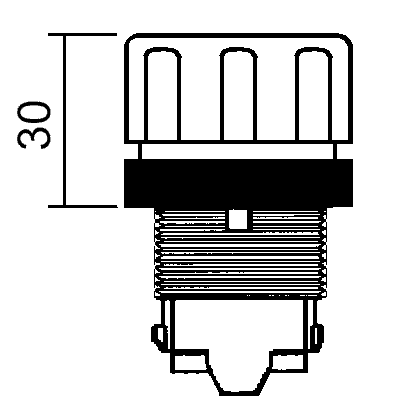

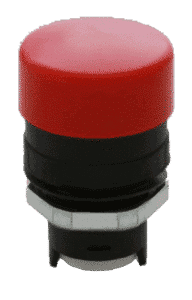

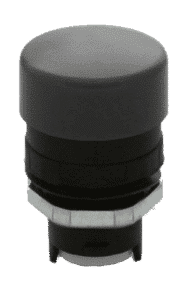

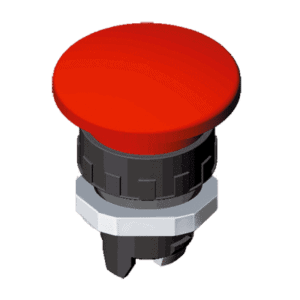

Ø30 mm mushroom head

Colors

EF1/30 – Black

EF2/30 – Red

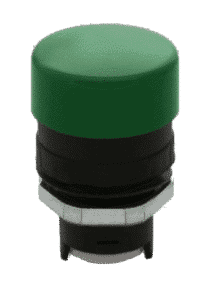

EF3/30 – Green

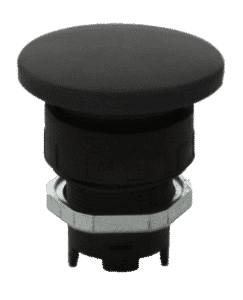

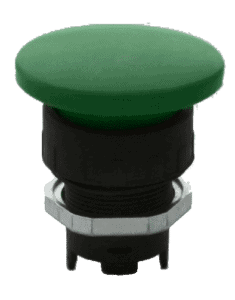

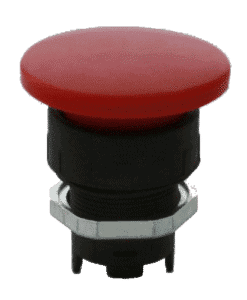

Ø40 mm mushroom head

Pulsante a fungo

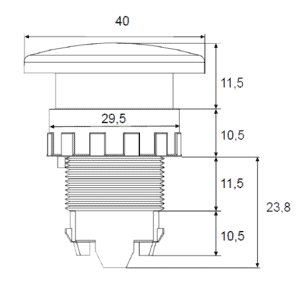

misure pulsante a fungo

Colors

EF1/40 – Black

EF2/40 – Red

EF3/40 – Green

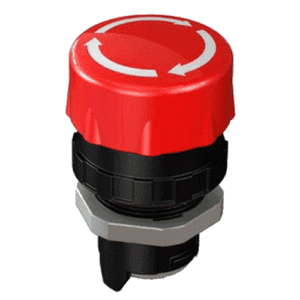

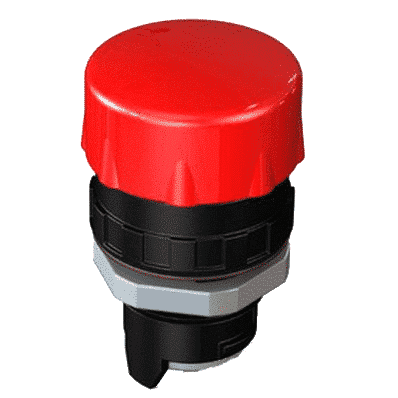

30 mm head button with turn reset

Colors

EFB2/30 – Red

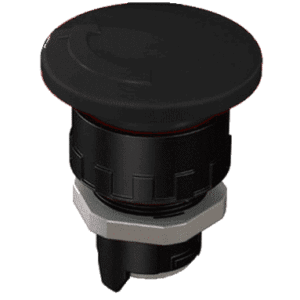

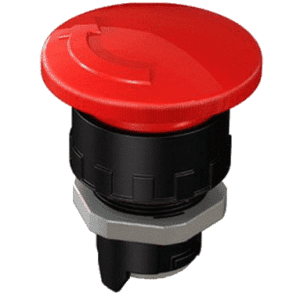

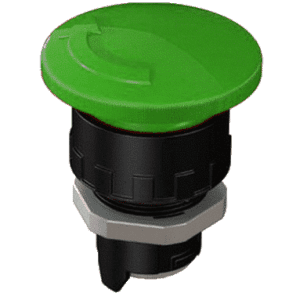

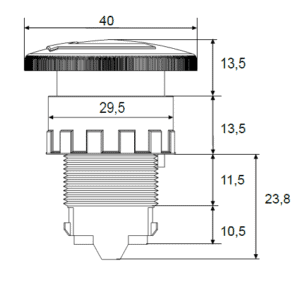

Mushroom Ø40 – head button with turn reset

Colors

EFB1/40 – Black

EFB2/40 – Red

EFB3/40 – Green

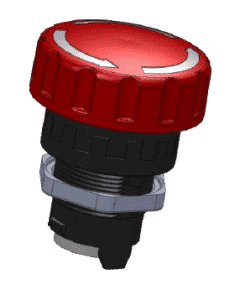

Colors

EFB2/40-NT – Red

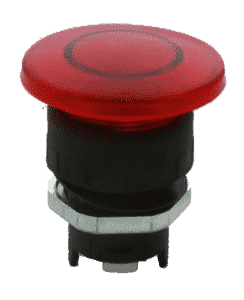

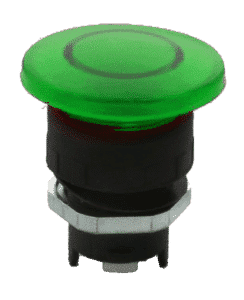

Ø40 mm Illuminated

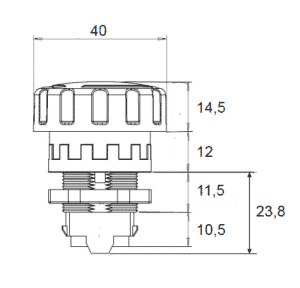

misure pulsante a fungo

Colors

EFL2/40 – Red

EFL3/40 – Green

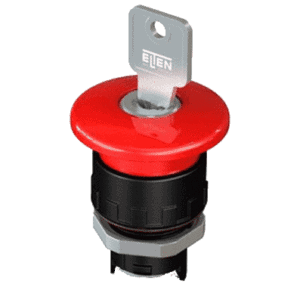

Mushroom – head button with key reset

Pulsante fungo chiave

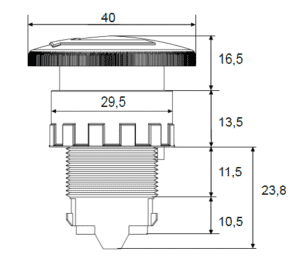

misure EFC

Colors

EFC2/40 – Red

Accessories

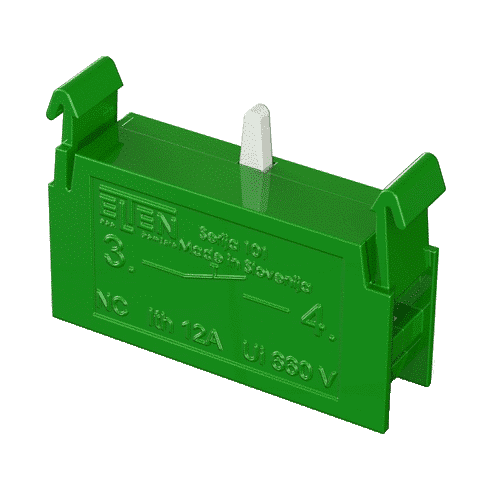

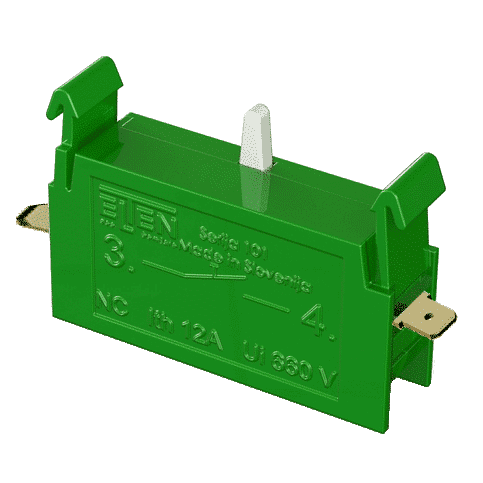

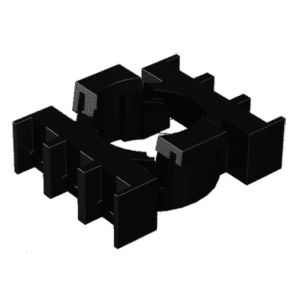

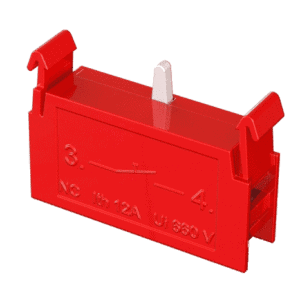

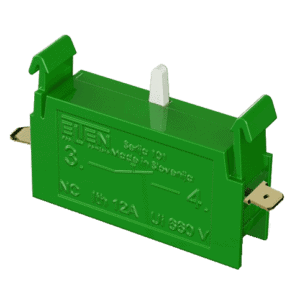

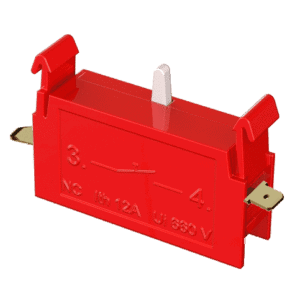

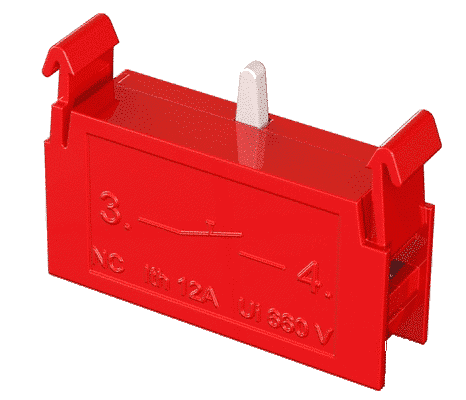

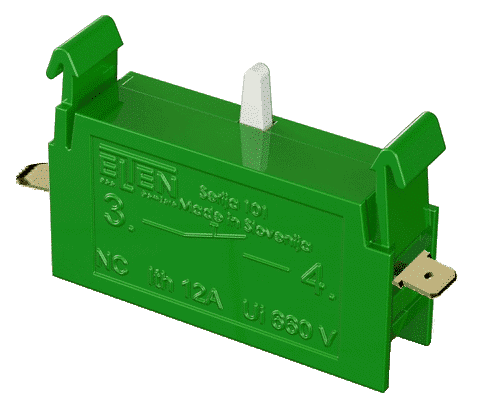

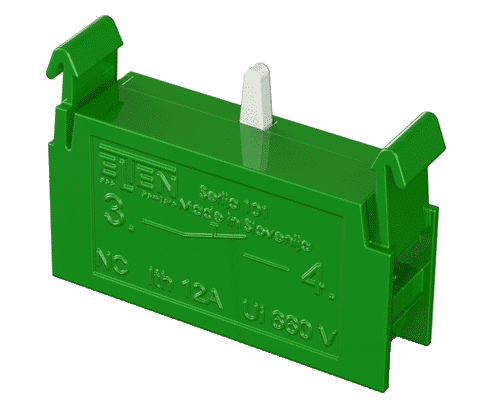

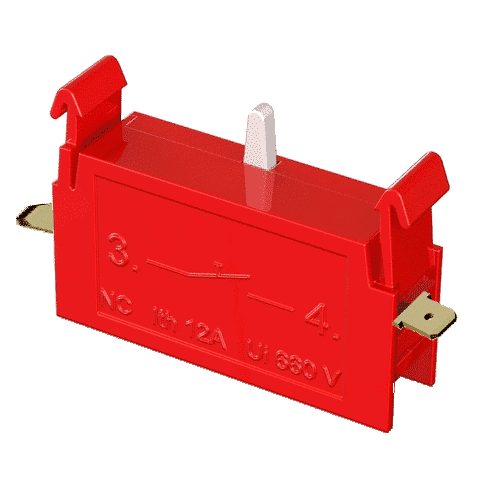

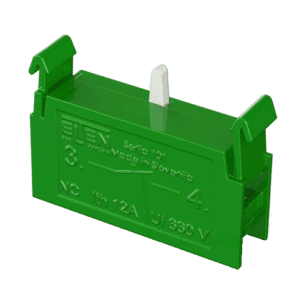

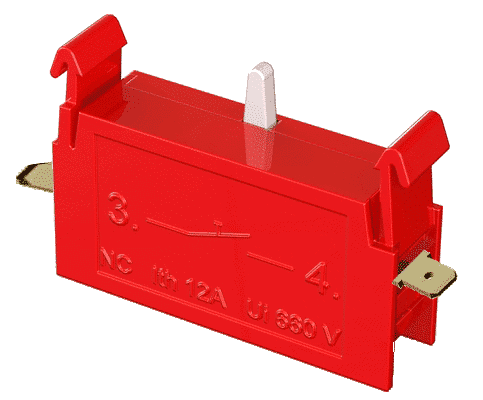

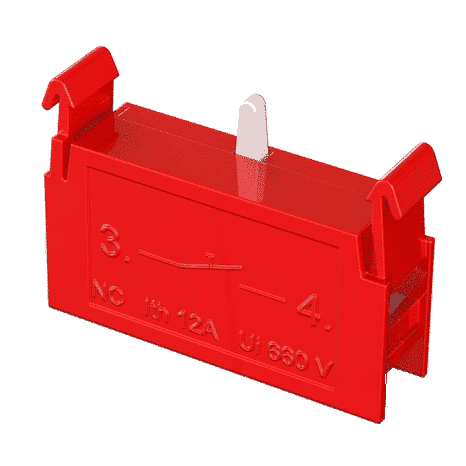

Contact support

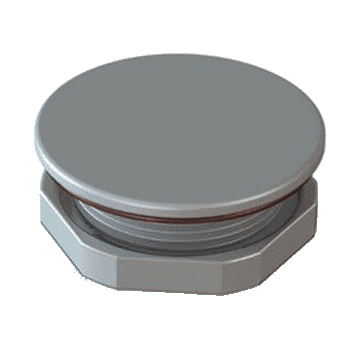

Cap

Reductions

holes Ø30 Ø22

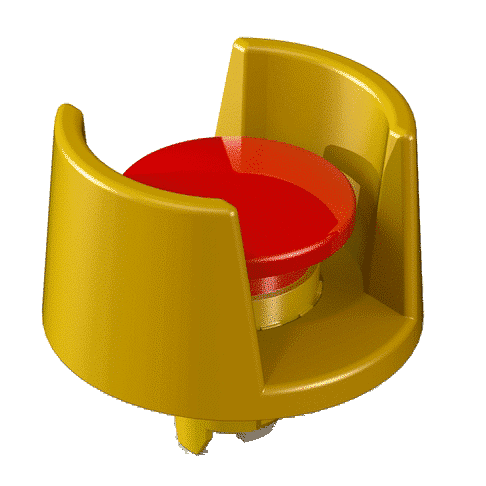

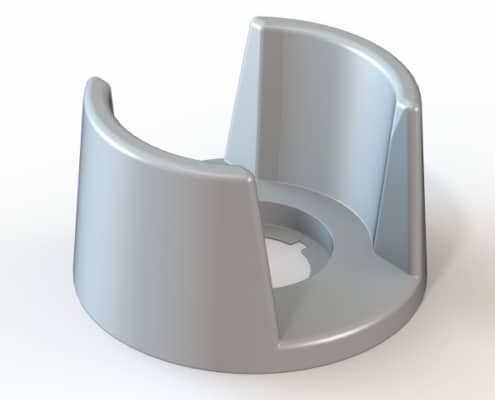

Plastic or metal protection against accidental operation of the mushroom button.

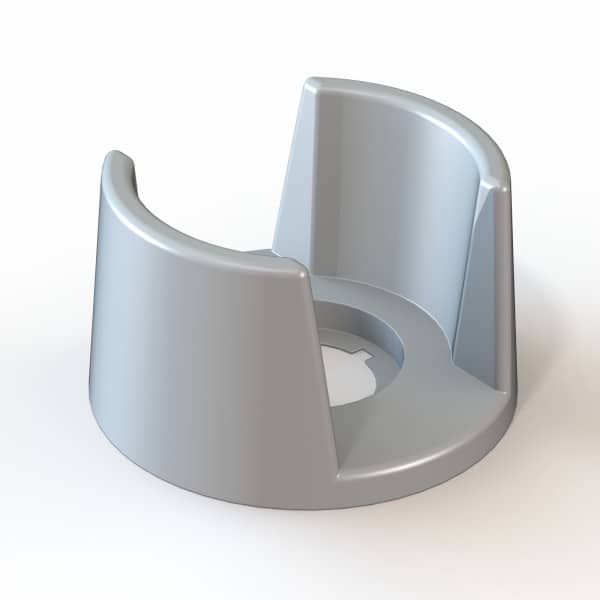

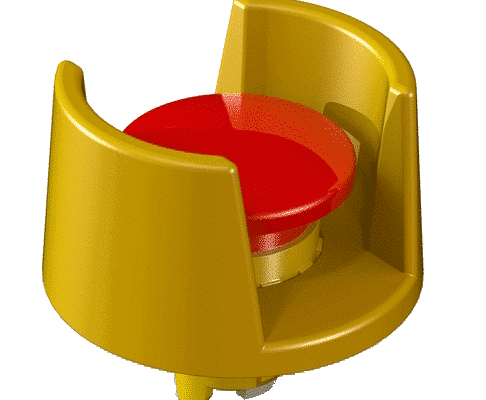

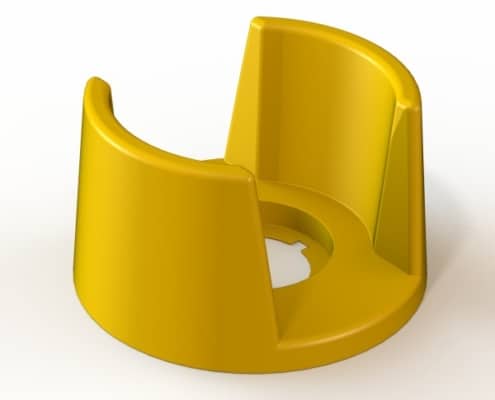

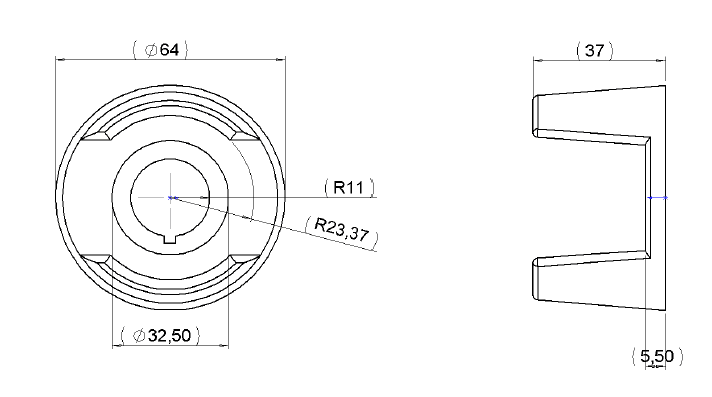

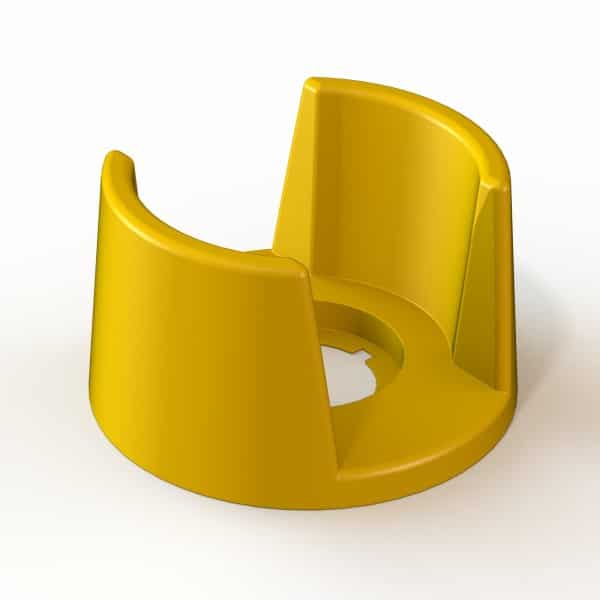

Protection cap PRF

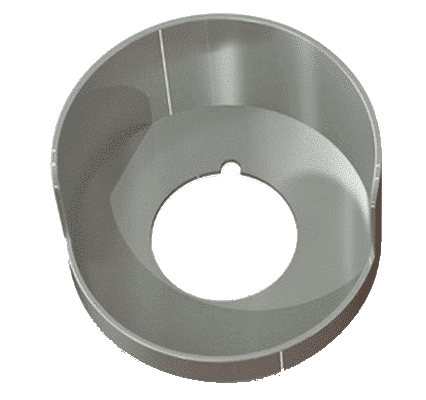

PRF/M Mushroom half metal collar shroud

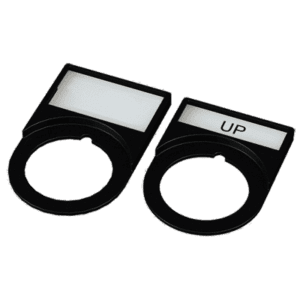

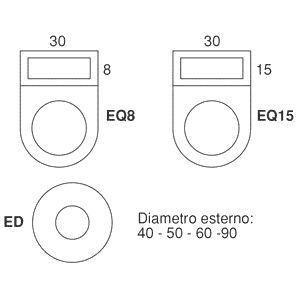

Plates EQ8 EQ15

Plates Version EQ8 (8mm) and EQ15 (15mm).

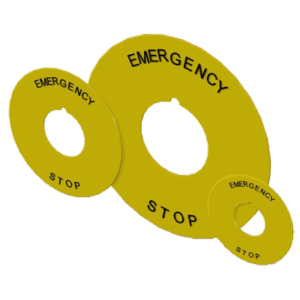

Yellow Plate ED

Yellow Plates Blank or Stop/Emergency Diameter 40/50/60/90.
