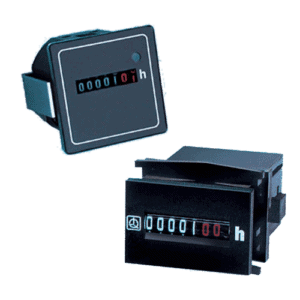

Hour meters
Hour meters
Hour meters
General Features
Reading accuracy: AC = 1/100 h (36 sec.) – DC = 1/10 h (6 min.)
Mounting: panel or rail DIN 35
Standards
Approvals

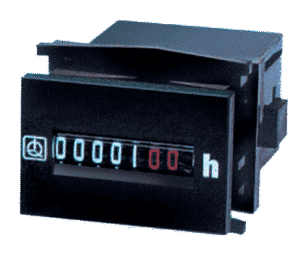

HK30
| AC | DC | |
|---|---|---|
| Operating voltage | 24V, 48V, 110V, 230V, 400V | 6-12V, 12-36V, 36-80V |
| Frequency | 50Hz, 60Hz | |
| Protection | IP40 | |
| Operating temperature | AC: from -25° to 70° | DC: from -10° to 55° |
| Display | 5 integers, 2 decimals | 6 integers, 1 decimal |
| Digit height | 4 mm | 4 mm |
| Integers Digit Color | white | |
| Decimal Digit Color | red | |
| Housing color | black | |
| Front dimension | 36×24 mm | |
| Bezels | 55×55 mm, 72×72 mm, 48×48 mm | |

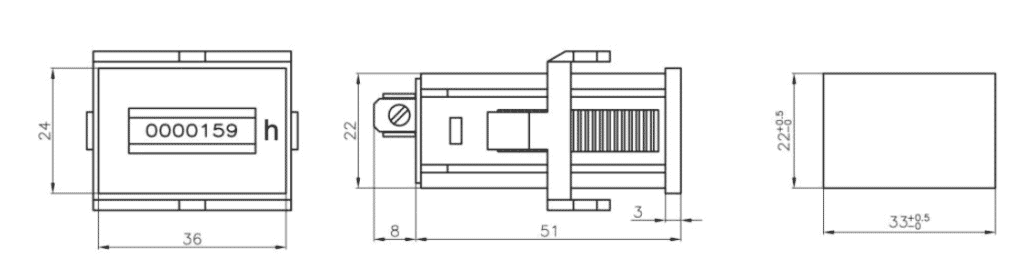

Dimensions
HK46
| AC | DC | |
|---|---|---|
| Operating voltage | 24V, 48V, 110V, 230V, 400V | 6-30V, 10-80V |
| Frequency | 50Hz, 60Hz | |
| Front Protection | IP40 | |
| Operating temperature | from -25° to +80° | from -10° to +80° |
| Display | 5 integers, 2 decimals | 6 integers + 2 decimals |
| Digit height | 4 mm | |
| Integers Digit Color | white | |
| Decimal Digit Color | red | |
| Housing color | black | |
| Front dimension | 48×48 mm | |
| Bezels | 55×55 mm, 72×72 mm | |

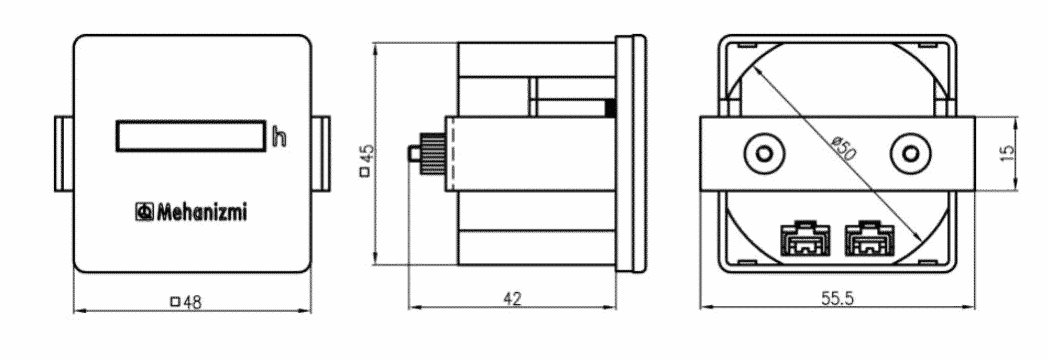

Dimensions
